| GPIO-MM-21 |

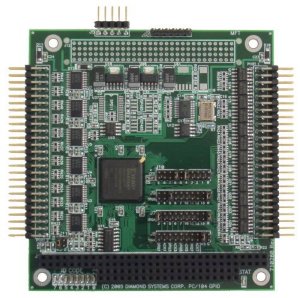

| Reconfigurable 96-line Digital I/O PC/104 Module
| |
| |
|
|
|
|
|
96 programmable digital I/O lines based on 8255 cores |
|
3 pin headers for a total of 100 I/O pins |
|
Based on a Xilinx Spartan II RAM-based FPGA for field reconfigurability FPGA personality display for easy identification |
|
-40°C to +85°C operation |
|
PC/104 form factor |
|
FREE Universal Driver software included |
|
|
|
|
Description |
GPIO-MM-21 is part of a family of reconfigurable digital I/O and counter / timer modules with various port and pin configurations. Each board uses identical hardware with a 200K gate Xilinx Spartan II RAM-based FPGA. The varying configurations are based on different FPGA code. The FPGA code is stored in a flash memory on the board, enabling GPIO-MM-21 to be reprogrammed in the field with different designs, including custom designs.
The GPIO-MM-21 configuration provides 96 digital I/O lines. 48 lines are buffered.
The 96 digital I/O lines are compatible with our legacy Garnet-MM and Onyx-MM
boards. This configuration combines the features of two 48-line digital I/O
boards into one board to reduce your PC/104 stack size and cost.
Other GPIO-MM configurations provide 48 digital I/O lines with 10 16-bit counter/timers.
Digital I/O Features
The digital I/O includes 96 programmable-direction lines using four 8255 cores. 48 of the I/O lines are buffered for enhanced output current. All I/O lines contain jumper-selectable 10Kohm pull-up/pull-down resistors. 48 I/O lines are contained on each of two 50-pin connectors, along with system ground and a convenient +5V power pin. Both I/O connectors provide the digital I/O lines in ABC port order.
Miscellaneous Features
The board requires only a +5V input and operates from -40°C to +85°C.
All board functions are supported by our Universal Driver software for Linux,
Windows 2000/XP/CE, DOS, and QNX.
|
I/O Headers |
GPIO-MM-21 Pin Definition
J3 Unbuffered Digital I/O
Port7 7 |
1 |
2 |
Port10 7 |
Port7 6 |
3 |
4 |
Port10 6 |
Port7 5 |
5 |
6 |
Port10 5 |
Port7 4 |
7 |
8 |
Port10 4 |
Port7 3 |
9 |
10 |
Port10 3 |
Port7 2 |
11 |
12 |
Port10 2 |
Port7 1 |
13 |
14 |
Port10 1 |
Port8 0 |
15 |
16 |
Port10 0 |
Port8 7 |
17 |
18 |
Port11 7 |
Port8 6 |
19 |
20 |
Port11 6 |
Port8 5 |
21 |
22 |
Port11 5 |
Port8 4 |
23 |
24 |
Port11 4 |
Port8 3 |
25 |
26 |
Port11 3 |
Port8 2 |
27 |
28 |
Port11 2 |
Port8 1 |
29 |
30 |
Port11 1 |
Port8 0 |
31 |
32 |
Port11 0 |
Port9 7 |
33 |
34 |
Port12 7 |
Port9 6 |
35 |
36 |
Port12 6 |
Port9 5 |
37 |
38 |
Port12 5 |
Port9 4 |
39 |
40 |
Port12 4 |
Port9 3 |
41 |
42 |
Port12 3 |
Port9 2 |
43 |
44 |
Port12 2 |
Port9 1 |
45 |
46 |
Port12 1 |
Port9 0 |
47 |
48 |
Port12 0 |
+5V |
49 |
50 |
Ground |
J4 Buffered Digital I/O
Port1 7 |
1 |
2 |
Port4 7 |
Port1 6 |
3 |
4 |
Port4 6 |
Port1 5 |
5 |
6 |
Port4 5 |
Port1 4 |
7 |
8 |
Port4 4 |
Port1 3 |
9 |
10 |
Port4 3 |
Port1 2 |
11 |
12 |
Port4 2 |
Port1 1 |
13 |
14 |
Port4 1 |
Port1 0 |
15 |
16 |
Port4 0 |
Port2 7 |
17 |
18 |
Port5 7 |
Port2 6 |
19 |
20 |
Port5 6 |
Port2 5 |
21 |
22 |
Port5 5 |
Port2 4 |
23 |
24 |
Port5 4 |
Port2 3 |
25 |
26 |
Port5 3 |
Port2 2 |
27 |
28 |
Port5 2 |
Port2 1 |
29 |
30 |
Port5 1 |
Port2 0 |
31 |
32 |
Port5 0 |
Port3 7 |
33 |
34 |
Port6 7 |
Port3 6 |
35 |
36 |
Port6 6 |
Port3 5 |
37 |
38 |
Port6 5 |
Port3 4 |
39 |
40 |
Port6 4 |
Port3 3 |
41 |
42 |
Port6 3 |
Port3 2 |
43 |
44 |
Port6 2 |
Port3 1 |
45 |
46 |
Port6 1 |
Port3 0 |
47 |
48 |
Port6 0 |
+5V |
49 |
50 |
Ground |
|
Specifications |
Base FPGA |
Xilinx Spartan II, 200,000 gates, 40K RAM bits |
Input clock |
40MHz |
FPGA code storage |
Flash memory, field upgradeable via JTAG |
ID indicator |
8-bit LED display indicates FPGA code personality |
No. of I/O pins |
100 pins (48 buffered) |
Programmable Digital I/O |
96 using 8255 cores |
Output current, buffered I/O |
Logic 0: 64mA max per line |
Dimensions |
3.55" x 3.775", PC/104 form factor |
PC/104 bus |
16-bit stackthrough ISA bus |
Power supply |
+5VDC ±5% |
Operating temperature |
-40°C to +85°C standard, all versions |
RoHS |
Compliant |
|
|
