Ruby-MM-416 Analog Output Module

4 Channel 16-bit Analog Output+24 DIO PC/104 Module

Not Recommended for New Designs. See Ruby-MM-1616A for new applications.

Ruby-MM-416 Analog Output Module
click for a larger image
Description
Analog Output Ranges
Free Software
I/O Header Pinout
Specifications
Get an online quote
Customize Me


Description

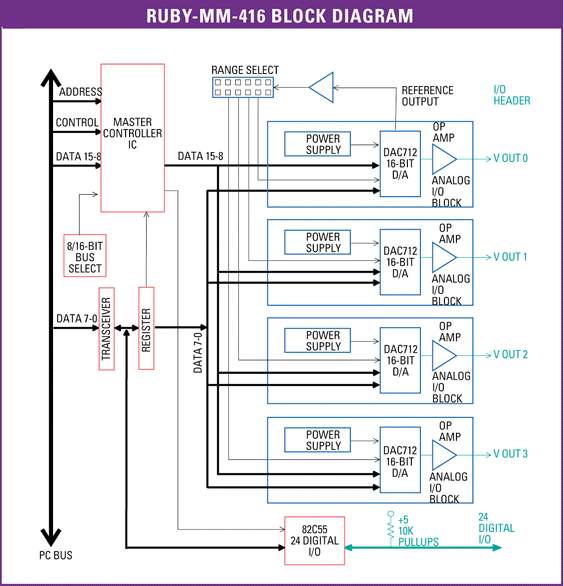

The Ruby-MM-416 PC/104 module provides 4 channels of 16-bit resolution analog voltage output. The output range for each channel can be independently selected for 0-10V, 5V, or 10V with jumpers. All outputs are updated simultaneously, either with a software command or in response to an external signal. The board includes 24 lines of digital I/O using an 82C55 chip. The I/O connector pinout is compatible with the Ruby-MM-4 12-bit analog output board shown in our catalog on pages 20-21. Other features include +5V-only operation, individual DC/DC converters with filtered outputs for each DAC to supply 15V for operation, and a six-layer circuit board to bury and shield the analog signals.

top
Analog Output Ranges

For any output range, the resolution is equal to the maximum possible range of output voltages divided by the maximum number of possible steps. A 16-bit D/A converter has very high resolution, because the maximum number of steps is 216 = 65536 (the actual output codes range from 0 to 65535, which is the full range of possible 16-bit binary numbers). Thus the resolution is equal to 1/65536 times the full-scale range. This is the smallest possible change in the output. It corresponds to a change of 1 in the output code, and therefore it is often referred to as the value of 1 LSB, or 1 least significant bit.

Output Range Resolution (1 LSB)
5V 153V
10V 310V
0 - 10V 153V

top
Free Software

This board ships with our free Universal Driver software for C language programming under DOS, Windows 95, and Windows NT. All major functions of the board are supported in the driver, and an example user program is included.

top
I/O Header Pinout

A 50-pin header is used for all I/O. This header is compatible with our Ruby-MM 12-bit D/A board, allowing an easy upgrade path for current 12-bit users.

ANALOG GND 1 2 VOUT 0
ANALOG GND 3 4 VOUT 1
ANALOG GND 5 6 VOUT 2
ANALOG GND 7 8 VOUT 3
N/C 9 10 N/C
N/C 11 12 N/C
N/C 13 14 N/C
N/C 15 16 N/C
N/C 17 18 N/C
ANALOG GND 19 20 +15V
-15V 21 22 ANALOG GND
DIGITAL GND 23 24 EXTERNAL TRIGGER
A7 25 26 A6
A5 27 28 A4
A3 29 30 A2
A1 31 32 A0
C7 33 34 C6
C5 35 36 C4
C3 37 38 C2
C1 39 40 C0
B7 41 42 B6
B5 43 44 B4
B3 45 46 B2
B1 47 48 B0
+5V 49 50 DIGITAL GND


top
Specifications

Analog Outputs
Quantity/resolution 4 channels, 16 bits
Output ranges 0-10V, 5V, 10V
Setting time 10s max to .003%
Linearity error 2 LSB max
Differential nonlinearity 2 LSB max
Monotonicity 15 bits minimum
Max output current 5mA/2KΩ min load
Reset All DACs reset to midscale
Digital I/O
No. of lines 24, TTL/CMOS compatible
Input voltage
Logic 0: -0.5V min, 0.8V max
Logic 1: 2.0V min, 5.5V max
Output voltage
Logic 0: 0.0V min, 0.4V max
Logic 1: 3.0V min, 4.6V max
Output current 2.5mA max per line
General
Dimensions 3.55" x 3.775"
Operating temperature -40C to 85C
Power requirements +5VDC @ 650mA typical
Weight 3.0oz/85g
RoHS Compliant
