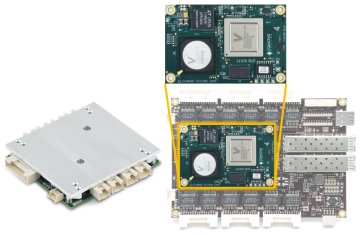

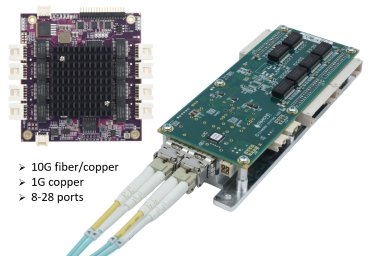

Did You Know? Diamond's EPSM-10GX4 Ethernet switch module provides a compact and time-saving approach to designing embedded Ethernet switch solutions. The core Ethernet switching technology is almost fully encapsulated on the module; for many applications, only the "last inch" of magnetics and I/O connectors is required to complete the circuit, enabling easy development of custom form factor compact, rugged Ethernet switch solutions.

Ultra-compact, the module is the same size as the industry standard COM Express Type 10 form factor (2.2" x 3.3" / 55 x 84mm). Its performance and small size make it a great choice for space-restricted applications, such as drones, autonomous ground and underwater vehicles as well as robots.

EPSM-10GX4 Key specifications

  • 24 10/100/1000 Gigabit Ethernet ports
  • 4 10G ports for use in SPF+ sockets 10G ports
  • Integrated 500 MHz MIPS CPU for control of all switch functions
  • With a more advanced software package, the module is capable of Layer 3 routing performance as well as IEEE1588 PTP protocol
  • Rugged Thicker PCB Tested to MIL-STD-202G shock/vibration levels
  • -40° to 85° operating temperature

While the EPSM-10GX4 is available on its own, the module was designed to work with a carrier board (off-the-shelf or custom). The module was designed to be the building block for creating custom Ethernet switch solutions (or designing a more complex product where the switch is just one component), engineers wishing to use the module for their own design can order the EPSM-10GX4 development kit.

EPSM-10GX4 development kit: (DK-EPSM10GX-01)

  • EPS-24G4X full feature switch with EPSM-10GX4 module installed and heat sink installed
  • WebStaX L2+ or IStaX L3 software installed, depending on the ordered part number
  • CK-EPS24G4X-01 Cable kit
  • Link to download design files:
    • EPS-24G4X carrier board schematics
    • EPS-24G4X carrier board PCB file
    • EPS-24G4X carrier board BOM
    • Logic source and programming files for CPLD that controls the port status LEDs
    • Design guide with recommendations, schematic snippets, part numbers, etc.
  • One day of software customization (typically used for custom branding and port configuration)

For an off-the-shelf solution, Diamond has two options: the 12-port, same-size EPS-12000-CM and the 28-port (includes 4 10G SFP+ ports) 3.5-inch EPS-24G4X which use the EPSM-10GX4 module in their designs.

Interested in learning more about EPSM-10GX4 or the development kit? Contact us via email at sales@diamondsystems.com.

Ethernet Switch
Epsilon-8100
Managed 8-Port Gigabit Ethernet Switch with wide voltage input and serial management port
Jetson Nano / NX system
JETBOX-FLOYD
Works with Nano and NX modules; PoE, M.2, and Minicard support

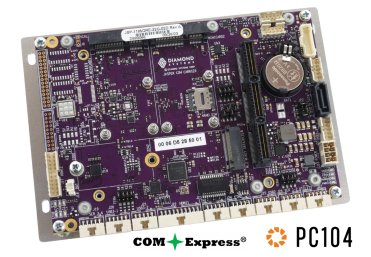

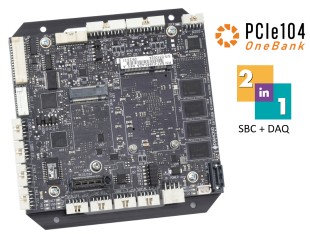

Rugged SBCs

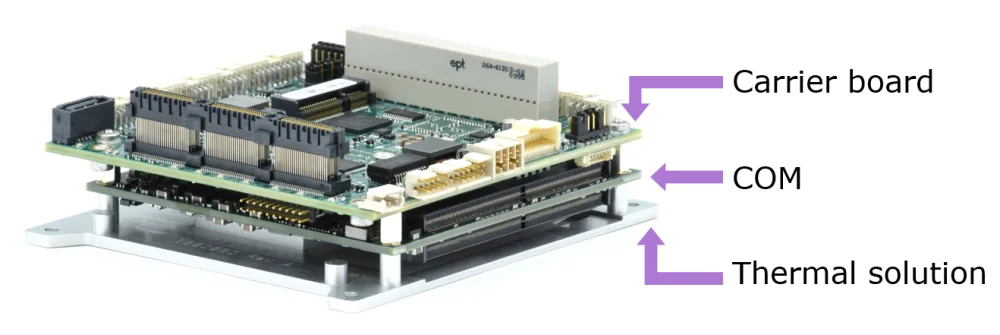

GEMINI
COM Express PCIe/104 SBC with Core i7 8th Gen CPU

What’s New at Diamond
Compact, rugged Ethernet switch module: EPSM-10GX4
  • Complete Ethernet switch subsystem
  • Simplifies development of custom Ethernet switches
  • 24x 1G ports, 4x 10G ports
  • Layer 2 switching & Layer 3 routing software
  • Rugged design: thicker PCB, MIL-STD-202G
  • -40 to +85C operation; Only 55x84mm / 2.2x3.3"
News
Diamond Systems Partners with BlackBerry QNX
Mission-critical embedded solutions using BlackBerry
The Benefits Of Autocalibration
Learn how you can save time and get convenience with the benefits of autocalibration. Also, For more information on Diamond Systems’ embedded
Family of PC/104 16-Bit Analog I/O Modules
Modules Excel in Rugged Applications
Diamond Introduces STEVIE™ Carrier Board for NVIDIA® Jetson™ AGX Xavier Modules
ELTON™ provides bridge to the emerging world of AI/ML technology

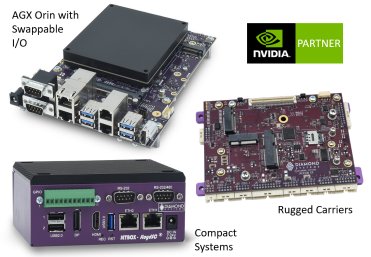

New Family of NVIDIA® Jetson™ Carrier Solutions
