Products   >   Processor Modules   >   Single Board Computers   >   Helios PC/104 SBC
CPU Features
Vortex86DX CPU at 1GHz or 800MHz
256MB of soldered DRAM
On-board 2MB bootable flash drive with FreeDOS installed
4 USB 2.0 ports
2 RS-232, 2 RS-232/422/485 serial ports
10/100Base-T Ethernet
1 IDE UDMA-100 port
Flashdisk interface
PC/104 ISA expansion bus
-40ºC to +85ºC operation
Data Acquisition
16 wide-range analog inputs, +/-10V down to 0-1.25V
16-bit A/D resolution
Single-channel, multi-channel round robin, and multi-channel scan sampling
250KHz maximum sample rate
2048 A/D sample FIFO with programmable threshold
Interrupt-based A/D data transfer with FIFO support
Programmable input ranges
4 wide-range analog outputs with simultaneous update capability
12-bit D/A resolution
Multi-range autocalibration for highest accuracy
40 digital I/O lines with programmable direction
16-bit and 24-bit counter/timers
Field-upgradeable logic circuit for performance upgrades or custom designs
Customers who use this product also use:
Helios Development Kit
Helios Software Development Kit
IDE Flashdisks
Helios Cable Kit

This product can be customized and ruggedized. Click here for more information.
See Helios PC/104 SBC Technical Resources
Request Product information
Request Technical Support
Helios Datasheet
(.pdf, 189.9 kb)
Octavio-HLV User Manual
(.pdf, 1,013.8 kb)
Helios User Manual
(.pdf, 2.1 MB)
Helios Quick Start Guide
(.pdf, 290.0 kb)
Helios Panel I/O Board User Manual
(.pdf, 534.5 kb)
Helios and Prometheus Product Comparison
(.pdf, 34.0 kb)
Helios EMI Test Results
(.pdf, 429.7 kb)
Helios CPU Downclocking Application Note
(.pdf, 291.9 kb)
Pandora Front Panel for Helios
(.pdf, 68.9 kb)
Helios VGA Heatsink
(.pdf, 36.5 kb)
Universal Driver Software
Helios Linux Ethernet Driver
(.gz, 23.0 kb)
Helios Linux Drivers
(.zip, 555.8 kb)
Helios CE 6.0 Drivers
(.zip, 166.4 kb)
Helios BIOS Files
(.zip, 1.4 MB)
Helios Windows XP Ethernet Driver
(.zip, 23.0 kb)
Helios Windows XP VGA Driver
(.zip, 8.1 MB)
Helios DOS Driver
(.zip, 93.5 kb)

Helios PC/104 SBC

PC/104 SBC with Vortex86DX CPU and Integrated Autocalibrating Data Acquisition

CPU + DAQ pc104

Helios pc104 SBC

Click here for a larger image
System Block Diagram
Integrated Data Acquisition
Development Kits
Cable Kit
Pandora and Panel I/O Board
Get an online quote
Customize Me


Helios is a low power, mid-range performance PC/104 form factor single board computer combining a highly integrated CPU with Diamond Systems’ renowned high-accuracy data acquisition circuitry on a single board, reducing size and cost while increasing ruggedness. Helios utilizes a Vortex integrated single chip CPU operating at 800MHz or 1GHz, and 256MB of DRAM soldered on-board.

Helios incorporates advanced features such as four USB 2.0 ports, an IDE hard drive interface, mounting capability for a solid state flashdisk up to 4GB, and CRT/LVDS LCD graphics. Helios also provides a 10/100Base-T Ethernet interface, two RS-232 serial ports, two RS-232/422/485 serial ports and legacy keyboard and mouse interfaces.

Helios includes an on-board 2MB bootable flash drive with FreeDOS installed. This flash drive offers additional cost savings for DOS applications, since no additional storage medium is required. It also enables you to quickly verify Helios's operation. Just connect keyboard, monitor, and power, and Helios boots up to DOS so you can verify proper working condition as well as test the various features on the single board computer.

Helios is extremely rugged, featuring on-board soldered DRAM and -40°C to +85°C fan-less operation. Optional hardwired jumpers and latching connectors are available for increased resistance to shock and vibration. Conformal coating is available as an extra cost option.

System Block Diagram

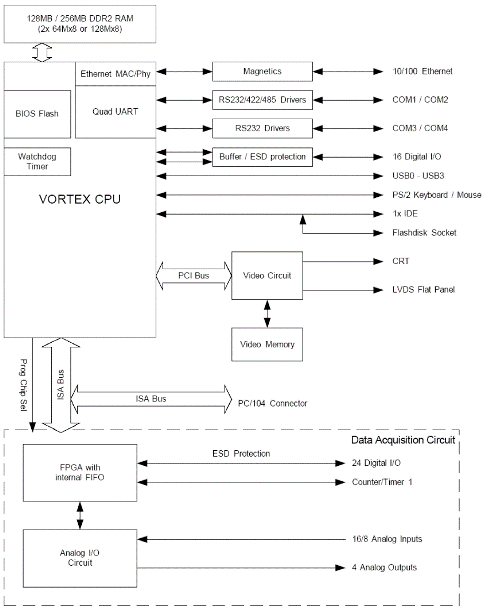

Helios System Block Diagram: click to enlarge

Integrated Data Acquisition

Helios includes a complete autocalibrating jumper-less analog and digital I/O circuit similar to our top-of-the-line PC/104 analog I/O board. It contains 16 analog inputs with 16-bit resolution and 250KHz sample rate, backed by a 2048 sample FIFO with programmable threshold. Programmable input ranges from a wide-range +/-10V down to 0-1.25V are provided. The analog circuitry also includes 4 D/A channels with 12-bit resolution and jumperless output range selection and simultaneous update capability. On the digital side, Helios provides 40 digital I/O lines with programmable direction, as well as two counter/timers for A/D sample rate control, pulse counting, frequency generation, or other applications. Its advanced control logic has more features and flexibility to fit almost any application, such as internal/external A/D clock source, scan and single-sample modes, and our exclusive programmable FIFO threshold that lets you tune the board's performance to your application. The data acquisition circuit is fully supported by our Universal Driver software for a wide range of operating systems.

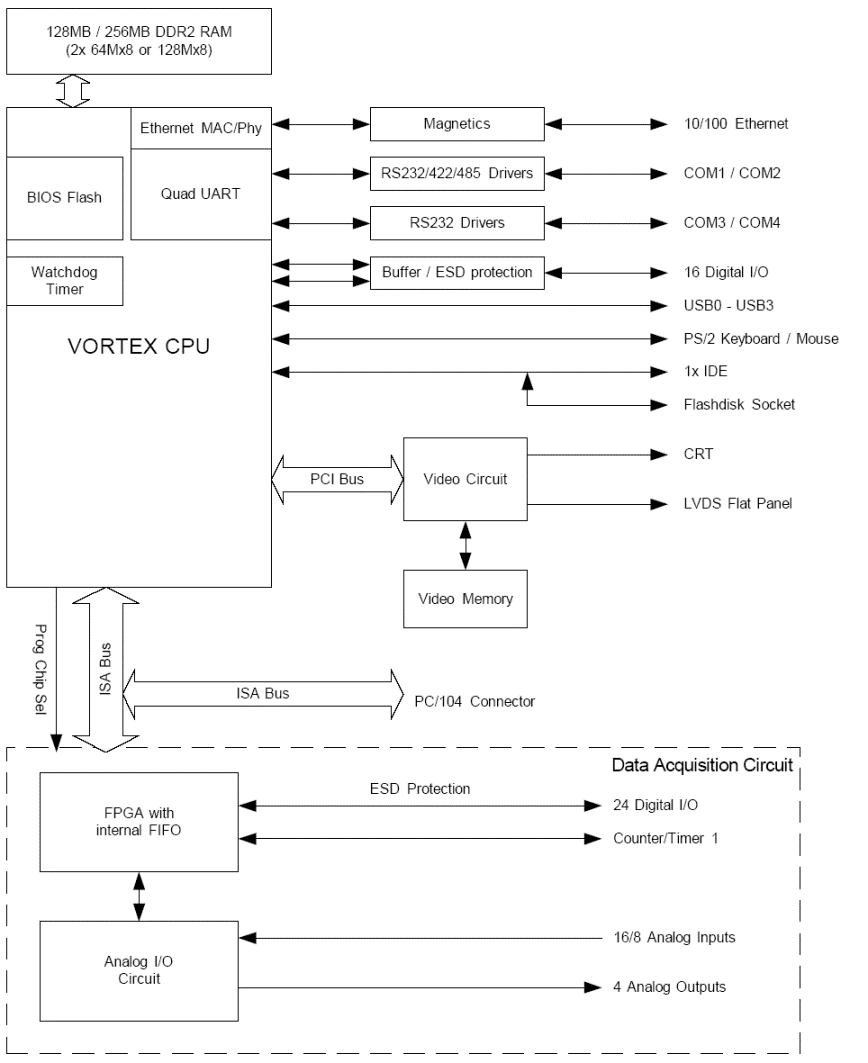

Helios Data Acquisition Block Diagram

Helios Development Kits

A Helios System Development Kit (DK-HLV800A-01) is available with all the components you need to get started on your embedded design project. The kit contains a Helios 800MHz SBC with 256MB of RAM and integrated data acquisition, 128MB flashdisk module with a bootable Linux image installed, cable kit, and software CD.

Two software development kits are also available for Helios; a Linux kit and a Windows CE kit. The Helios Linux Kit (SDK-HLV-LNX) contains a 256MB flashdisk with a bootable linux image pre-loaded, a software CD with the linux tool chain and a backup image, and documentation. The Helios Windows CE Kit (SDK-HLV-WCE) contains a 128MB flashdisk with a bootable Windows CE image pre-loaded, a software CD with development tools and a backup image, and documentation.

C-HLV-KIT: Cable kit for Helios PC/104 SBC

The Helios cable kit includes cables for Helios input and output. Many cables are also available individually.

Helios PC/104 SBC Cable Kit

C-HLV-KIT includes the following cables:

No. Qty Cable Description Drawing
1 1 6981004 IDE, 44 conductor 2mm ribbon cable Show
2 1 6981006 Output power cable Show
3 1 6981009 Power input cable Show
4 2 6981082 Dual USB 2.0 type A Show
5 1 6981083 Keyboard/Mouse, 2mm 2x4 crimp to 2x Mini-DIN-6 Show
6 1 6981084 VGA Show
7 1 6981161 RJ45PNL-CRIMP2x5 2mm, 12" Show
8 1 6981163 CRIMP50xIDC50FxIDC50F, 21 0.1"x2MMx2MM Data Acquisition Show
9 1 6981164 Ribbon cable for Opto-isolated GPIO Show
10 1 6981166 IDC40F 2mm-DB9Mx4, 12" Serial Ports 1-4 Show
11 1 6981169 Ribbon cable for GPIO, A/D, and misc Show
12 1 6981180 External Battery Show

Pandora and Panel I/O Board

pc104 enclosure

Helios single board computers can be mounted inside Diamond's Pandora PC/104 enclosure with a cable-free panel I/O board to form a rugged, compact, completely self-contained industrial computer system. The Pandora enclosure, coupled with the panel I/O board, features fast and easy assembly due to the fact that most or all internal cables can be eliminated. Rather than requiring the installation of special corner mounts or forcing the stack into a set of corner guides, the entire stack is bolted directly to the front plate of the case, forming a rugged, easily-handled assembly. Click here for more information on the Pandora PC/104 Enclosure.

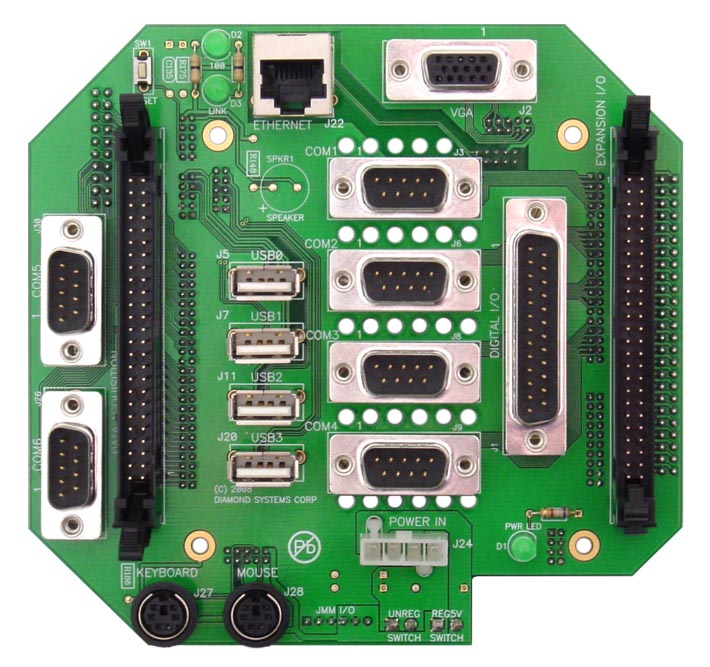

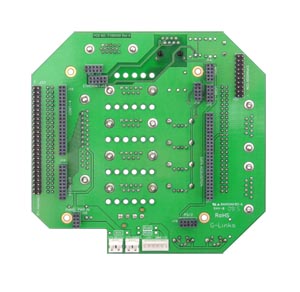

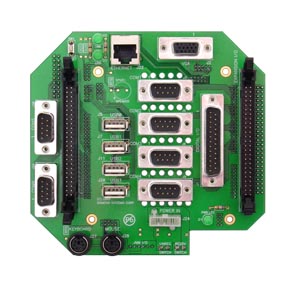

Helios Panel I/O Board: Top Helios Panel I/O Board: Bottom
Click here for a larger image
Click for a larger image

Transition Cables or PC-Style Connectors

All I/O on Helios is made available on 2mm pitch pin headers for use with low-cost cables. To enhance the use of Helios in harsh environments requiring outstanding resistance to shock and vibration, Diamond Systems offers our rugged Pandora PC/104 enclosure that provides a cable-free configuration via a small panel I/O board that installs directly on top of the Helios to instantly convert all I/O to PC-style connectors:


Processor Vortex86DX at 1GHz or 800MHz
Memory 256MB of on-board DRAM
Bus Interface PC/104 (ISA)
Display Type CRT and LVDS LCD
Display Resolution 1280 x 1024 maximum
USB Ports (4) USB 2.0
Serial Ports (2) RS-232; (2) RS-232/422/485
Networking 10/100Base-T Ethernet
Mass Storage (1) IDE UDMA-100 port, Flashdisk interface
On-board storage 2MB bootable flash drive with FreeDOS installed
Keyboard / Mouse PS/2
Input power 5V ±5%
Power Consumption HLV800-256AV: 5.4W typical, 7.3W maximum
HLV800-256DV: 4.3W
Cooling Heat sink, no fan
Operating Temperature -40°C to +85°C (800MHz models)
-40°C to +71°C (1GHz models)
Dimensions 3.550” x 3.775” (90mm x 96mm)
Weight 2.5 oz / 70.8g
MTBF HLV800-256AV: 65,535 hours
RoHS Compliant
Analog Inputs 16 single-ended or 8 differential, user selectable
A/D resolution 16 bits
Input ranges ±10V, ±5V, ±2.5V, ±1.25V, 0-10V, 0-5V, 0-2.5V programmable
Max Sample Rate 250KHz
Protection ±35V on any analog input without damage
Nonlinearity ±3LSB, no missing codes
On-board FIFO 2048 samples, programmable threshold
A/D and D/A Calibration Autocalibration with software support
Analog Outputs 4, 12-bit resolution
Output ranges ±5V, ±10V, 0-5V, 0-10V
Input impedance 10^13 ohms
Output current ±5mA max per channel
Settling time 10µS max to 0.012%
Relative accuracy ±2 LSB
Nonlinearity ±2 LSB, monotonic
Reset Reset to zero-scale or mid-scale (jumper selectable)
Digital I/O lines Up to 40 programmable direction
Input voltage Logic 0: 0V min, 0.8V max
Logic 1: 2.0V min, 5.5V max
Input current 1µA at 3.3V, -5µA at 0V
Output voltage Logic 0: 0.0V min, 0.55V max
Logic 1: 2.0V min, 3.3V max
Output current Logic 0: 64mA max at 0.55V
Logic 1: 32mA max at 2V
A/D Pacer clock 24-bit down counter
Clock source 10MHz on-board clock or external signal
General purpose 16-bit down counter

Get an online quote

Helios PC/104 SBC
available models:
Helios SBC, 1GHz Vortex86DX, 256MB RAM, full data acquisition, VGA/LCD video
Helios SBC, 1GHz Vortex86DX, 256MB RAM, digital I/O, VGA/LCD video
Helios SBC, 800MHz Vortex86DX, 256MB RAM, full data acquisition, VGA/LCD video
Helios SBC, 800MHz Vortex86DX, 256MB RAM, digital I/O, VGA/LCD video
Helios Development Kit with HLV800-256AV SBC, cables and software
Helios Cable Kit
Helios Linux 2.6.23 Software Development Kit with Linux image on 256MB flashdisk and software tools on CD, and documentation
Helios Windows Embedded CE 6.0 Software Development Kit with 128MB flashdisk
Please login or signup for an online quote request.

Cables and accessories
available models:
C-HLV-KIT cable kit
IDE, 44 conductor 2mm ribbon cable
Output power cable
Power input cable
Dual USB 2.0 type A
Keyboard/Mouse, 2mm 2x4 crimp to 2x Mini-DIN-6
RJ45PNL-CRIMP2x5 2mm, 12"
CRIMP50xIDC50FxIDC50F, 21 0.1"x2MMx2MM Data Acquisition
Ribbon cable for Opto-isolated GPIO
IDC40F 2mm-DB9Mx4, 12" Serial Ports 1-4
Ribbon cable for GPIO, A/D, and misc
External Battery
Please login or signup for an online quote request.
