Diamond's Products

2017 Product Guide
Download our
2017 Product Guide (pdf 16.2MB)

Diamond's products are designed from the ground up to meet the challenges of harsh environments at competitive prices. Our products are used successfully around the world in applications such as:

  • Military air, land, and sea vehicles
  • Locomotives
  • Passenger trains and subways
  • Unmanned airborne and underwater vehicles
  • Robots
  • Spacecraft and the International Space Station
  • Medical equipment
  • Scientific equipment
  • Industrial automation




top
Single Board Computers

Our compact, rugged, wide-temperature SBCs feature a range of price / performance points and sizes to meet the requirements of almost any embedded application where I/O and/or ruggedness are key requirements. In addition to the traditional single-board architecture, we also offer COM-based SBCs, which consist of a common carrier board that mates with a range of CPU modules to provide performance scalability, high feature density, and superior lifecycle.


Single Board Computers
Rugged, wide-temperature SBCs in PC/104, PC/104-Plus, EPIC, EBX, and other compact form-factors.
COM-based SBCs
SBCs based on COM Express and ETX COMs for high feature density, scalable performance, and longest lifetime.

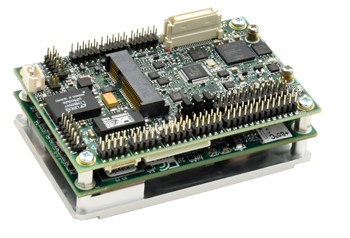

Aries Zeta

top
I/O Expansion Modules

Analog I/O PC/104 Modules dsmpedaq0804
rubymm1616ap
From the very beginning Diamond has been devoted to offering a wide range of rugged, feature-packed, wide-temperature I/O expansion modules. Our modules are supported by our proprietary free and highly versatile Universal Driver software, which simplifies programming effort and enables full control of each board’s features.


Analog I/O Modules
An industry-leading family of PC/104, PC/104-Plus, PCIe/104 / OneBank, PCIe MiniCard, and FeaturePak data acquisition modules featuring A/D, D/A, DIO, and counter/timer functions.
Digital I/O Modules
Wide-temperature PC/104, PC/104-Plus, PCIe/104 / OneBank, PCIe MiniCard, and FeaturePak modules featuring programmable bidirectional digital I/O, counter/timers, optoisolated inputs, and relay outputs.
Communications Modules
Rugged, wide-temperature PC/104, PC/104-Plus, PCIe/104 / OneBank, PCIe Minicard, and FeaturePak modules featuring standard and optoisolated RS-232/422/485 serial interfaces, Ethernet, CAN bus, and digital I/O functions.

top
Ethernet Switches

eps8100 eps12g2
Diamond’s line of rugged Ethernet switch board-level products has found great success in a wide assortment of military and commercial vehicle applications as well as stationary equipment solutions. All our switches feature embedded control software with Layer 2+ capability. Our switches are also available as complete rugged systems. Visit our Raptor and Sabre product pages for more information.

  > >  Click to view our Ethernet Switches  < <

top
Power Supplies

jupiter5000
We offer a range of rugged, wide-temperature power supplies in the PC/104 form factor that support the use of our products in industrial and some vehicle applications.


Power Supplies
Rugged, wide-temperature, PC/104-sized DC/DC power supplies

top
Systems

Midi-aries
Sabre
Diamond offers both industrial grade and military grade computer systems ready to meet a wide variety of applications. Our systems have been successfully deployed in traffic control, industrial control, shipboard, and other applications around the world. All systems can be customized, including connectors, I/O features, power, and more.


Rugged Systems
Compact, high quality, rugged systems built around Diamond's single board computers and I/O modules. Capable of operating fanless over extended temperature range of -40 to +85 deg C.
Midi
I/O-rich “Box PCs” using x86 and ARM processors and offering ample expansion possibilities
Raptor
Rugged computer and Ethernet Switch systems designed for Military applications
Sabre
Rugged, versatile, economical mission computers and Ethernet switches

mSata Flash Disk

top
Accessories

We offer RAM, flash, and various other accessories to support the integration of our boards into your product.

  > >  Click to view our memory, and adapter products.  < <
eps24g2x cable kit

top
Cables

We offer cables and cable kits to support the integration of our boards into your product.

  > >  Click to view our cables and cable kits.  < <
Linux Development Kits
Microsoft Partner
Linux

top
Software

Diamond Systems offers a range of software support for our embedded computing products, ranging from drivers to complete OS board support packages.

  > >  Click to go to our software page.  < <

top
Services and Lifecycle Extension

Customized SBCs
Diamond has extensive experience in customizing our standard products as well as designing full-custom SBC and I/O boards based on our extensive embedded computing technology library. We can also help you extend the life of your product by offering lifecycle extension programs for products taken out of standard production. Find out how we can help you meet your special needs.

Customization
Modified and fully custom board-level products
Ruggedization
A range of services to increase the ruggedness and reliability of our products
Lifecycle Management Program
Diamond offers several solutions for extending the lifecycle of your project past the normal end of life of the boards used in it.
End-of-Life Products
Learn about our lifecycle management program and see our list of EOL products which are still available with minimum-order-quantity requirements.
