Products   >   Processor Modules   >   COM-based SBCs   >   ETX Computer-on-Modules
FEATURES
Selection of CPUs from low power to high performance
Up to 2GB of SO-DIMM DDR2 SDRAM
10/100Mbps Ethernet
2048x1536 CRT, Dual 18-bit (N270) or 24-bit (945) LVDS
2 SATA, IDE supports 2 devices
2 serial ports
4 USB 2.0 ports
PS/2 keyboard & mouse ports
Parallel port
AC97 audio
ISA and PCI expansion buses
-20ºC to +71ºC or -40ºC to +85ºC operation
ONLINE SUPPORT
Request Product information
Request Technical Support
DOWNLOADS
Pluto Datasheet
(.pdf, 282.7 kb)
Neptune Datasheet
(.pdf, 472.7 kb)
ETX COMs Overview
(.pdf, 295.4 kb)
Neptune User Manual
(.pdf, 3.1 MB)
Pluto User Manual
(.pdf, 1.1 MB)
Embedded Ready Subsystems whitepaper
(.pdf, 386.4 kb)
Standards-Based COM Carriers
(.pdf, 222.9 kb)
6884011 ETX Heatsink drawing
(.pdf, 397.2 kb)
ETX-N270 Connector Dimension Drawing
(.pdf, 773.5 kb)
ETX-N270 Mounting Hole Dimensions Drawing
(.pdf, 872.2 kb)
6884012 ETX Heatspreader Drawing
(.pdf, 444.2 kb)

ETX Computer-on-Modules

Low power, wide-temperature, high performance ETX 3.0 Computer-on-Modules



ETX Computer-on-Modules
click for a larger image
ETX COM Block Diagram
System Memory
Heatsinks
Baseboards
Additional Development Services
Specifications
Get an online quote


Description

Diamond's ETX Computer-on-Module (COM) family provides a series of compact, plug-compatible, embedded computing cores for powering a wide variety of custom embedded applications. The modules are intended to be plugged into application-specific baseboards to create a customized embedded computing subsystem--an approach that minimizes product development investments and risks, and shortens time-to-revenue.

Each Diamond ETX COM integrates a complete set of PC-compatible functionality, including a high-performance processor, up to 2GB of DDR2 SO-DIMM SDRAM, and an extensive set of system controllers and peripheral interfaces. CPU options range from the low-power Intel Atom to the high-performance Intel Core 2 Duo, enabling an optimal match to the application's performance, power, and cost requirements.

By virtue of their conformance to the ETX Version 3 specification, Diamond's ETX COMs provide a consistent set of on-board controllers and I/O interfaces, and are essentially interchangeable with one another. The modules include CRT and dual 18-bit or 24-bit LVDS video, 10/100Mbps Ethernet, SATA, IDE, USB 2.0, audio, serial, parallel, and PS/2 ports. Additionally, they offer both 32-bit PCI and 16-bit ISA buses, allowing maximum flexibility of application development. To accommodate harsh outdoor environments, the modules also support extended operating temperatures.

top

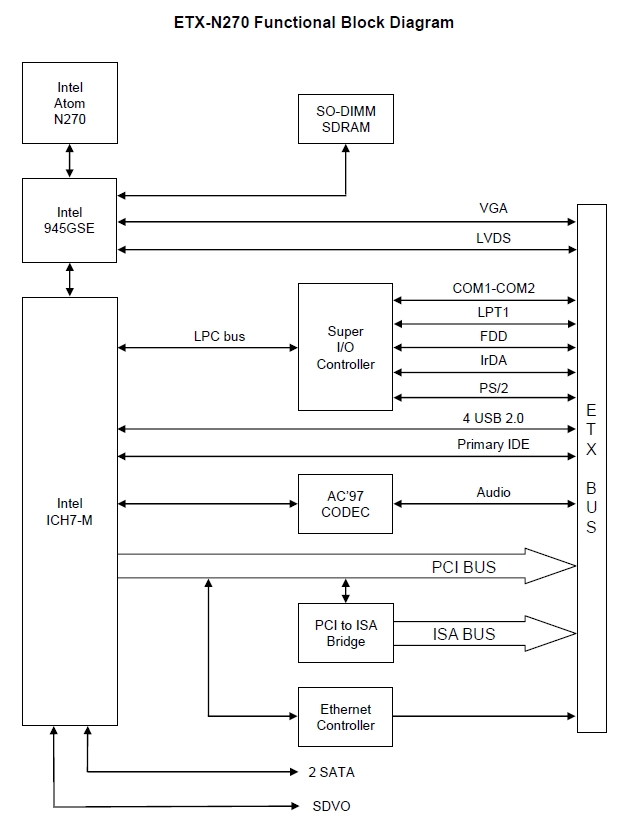

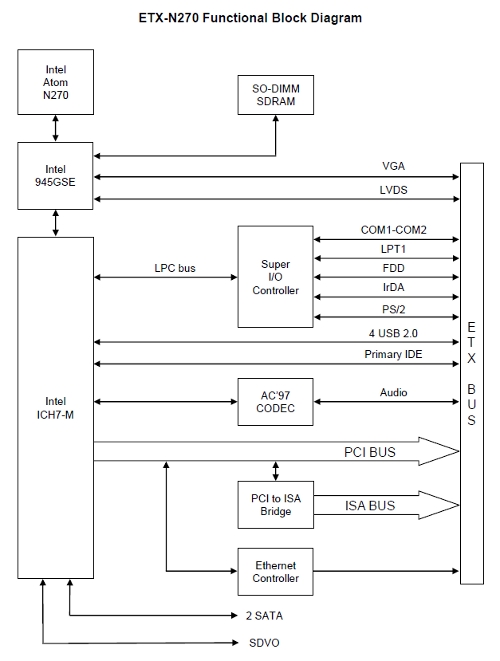

ETX COM Block Diagram


ETX COM Block Diagram

top
System Memory

Each ETX COM has a 200-pin SO-DIMM socket for system memory with support for up to 2GB of DDR2 SDRAM on some models. Each of these SO-DIMMs has an operating temperature of -40ºC to +85ºC. The following memory modules are available.

Part No. Description
MEM-1024-05 1GB DDR2 SO-DIMM SDRAM
MEM-2048-05 2GB DDR2 SO-DIMM SDRAM

top
Heatsinks

The following heatsinks are available for Diamond's ETX COMs, giving you flexibility of thermal management for your application.

Part No. Description
6884011 Heatsink for ETX-N270RK-1600, 114 x 95 x 22mm
6884012 Heatspreader for ETX-N270RK-1600, 114 x 95 x 5mm
6884020 Heatspreader for ETX-945-xxxxx for soldered on CPUs, 114 x 95 x 21mm
6884022 Heatsink with fan for ETX-945-xxxxx for soldered on CPUs, 114 x 95 x 30mm
6884024 Heatsink with fan for ETX-945-xxxxx for socketed CPUs, 114 x 95 x 30mm

top
Baseboards

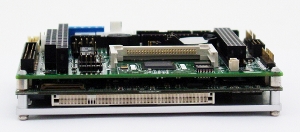

Standard ETX Baseboard

The Pluto ETX Baseboard Matches ETX 3.0 Dimensions

Diamond offers a standard ETX baseboard (shown above) that matches the form-factor of the ETX 3.0 COM standard. The Pluto baseboard integrates a full set of I/O headers on its top side, along with a PC/104-Plus expansion bus for modular addition of other required functions. The ETX 3.0 COM (and its heatspreader) installs on the baseboard's bottom side, as shown in the right-hand photo above.

Part No. Description
PLT-BASE PC/104-Plus ETX baseboard

Application-specific ETX Baseboards

Through more than 20 years of experience producing industry-leading data acquisition I/O on PC/104 and PC/104-Plus modules and single-board computers, Diamond has developed an extensive library of analog, digital, and I/O interface technology. This expertise is now available in the form of application-specific baseboards tuned to fit precise customer requirements, coupled with ETX COMs implement the processing power needed to drive the application.

  >  >  Find out more about Diamond's custom ETX baseboard design services.  <  <

top
Additional Development Services

Other value-added services offered to ETX COM customers include:

  • Operating system, device drivers, and BIOS customization and support
  • Addition of latching connectors
  • Burn-in and screening
  • Conformal coating
  • Extended temperature testing
  • Full systems integration
  • Program management
  • top
    Specifications

    Function ETX-N270RK-1600 ETX-945-T7400 ETX-945-L7400 ETX-945-U7500 ETX-945-L2400 ETX-945-U2500 ETX-945-CM423
    Processor Intel Atom N270 Intel Core2Duo Intel Core2Duo LV Intel Core2Duo ULV Intel CoreDuo LV Intel CoreDuo ULV Intel Celeron M ULV
    CPU Speed 1.6GHz 2.16GHz 1.5GHz 1.06GHz 1.66GHz 1.2GHz 1.06GHz
    Socketed or Soldered CPU Soldered on In socket Soldered on Soldered on Soldered on Soldered on Soldered on
    Front Side Bus (FSB) 533MHz 667MHz 667MHz 533MHz 667MHz 533MHz 533MHz
    Chipset Intel 945GSE + ICH7M Intel 945GME + ICH7M Intel 945GME + ICH7M Intel 945GME + ICH7M Intel 945GME + ICH7M Intel 945GME + ICH7M Intel 945GME + ICH7M
    200-pin SO-DIMM Memory Up to 2GB DDR2 SDRAM Up to 2GB DDR2 SDRAM Up to 2GB DDR2 SDRAM Up to 2GB DDR2 SDRAM Up to 2GB DDR2 SDRAM Up to 2GB DDR2 SDRAM Up to 2GB DDR2 SDRAM
    VGA/LCD Controller GMA950 with CRT/LVDS GMA950 with CRT/LVDS GMA950 with CRT/LVDS GMA950 with CRT/LVDS GMA950 with CRT/LVDS GMA950 with CRT/LVDS GMA950 with CRT/LVDS
    LCD Display Dual channel 18-bit LVDS Dual channel 24-bit LVDS Dual channel 24-bit LVDS Dual channel 24-bit LVDS Dual channel 24-bit LVDS Dual channel 24-bit LVDS Dual channel 24-bit LVDS
    SDVO Out External VGA, DVI, LVDS none none none none none none
    IDE Interface Ultra ATA 100/66/33 supports 2 devices Ultra ATA 100/66/33 supports 2 devices Ultra ATA 100/66/33 supports 2 devices Ultra ATA 100/66/33 supports 2 devices Ultra ATA 100/66/33 supports 2 devices Ultra ATA 100/66/33 supports 2 devices Ultra ATA 100/66/33 supports 2 devices
    Serial ATA 2 SATA 2 SATA 2 SATA 2 SATA 2 SATA 2 SATA 2 SATA
    Ethernet Realtek 8103EL 10/100Base-T Intel 82562 10/100Base-T Intel 82562 10/100Base-T Intel 82562 10/100Base-T Intel 82562 10/100Base-T Intel 82562 10/100Base-T Intel 82562 10/100Base-T
    USB Ports 4 USB 2.0 4 USB 2.0 4 USB 2.0 4 USB 2.0 4 USB 2.0 4 USB 2.0 4 USB 2.0
    Serial Ports 2 logic-level ports 2 logic-level ports 2 logic-level ports 2 logic-level ports 2 logic-level ports 2 logic-level ports 2 logic-level ports
    Parallel port 1 SPP/EPP/ECP or Floppy 1 SPP/EPP/ECP or Floppy 1 SPP/EPP/ECP or Floppy 1 SPP/EPP/ECP or Floppy 1 SPP/EPP/ECP or Floppy 1 SPP/EPP/ECP or Floppy 1 SPP/EPP/ECP or Floppy
    Keyboard/Mouse PS/2 PS/2 PS/2 PS/2 PS/2 PS/2 PS/2
    Real-time Clock Yes Yes Yes Yes Yes Yes Yes
    Watchdog Timer 255-level reset 255-level reset 255-level reset 255-level reset 255-level reset 255-level reset 255-level reset
    Expansion Bus Capacity ISA & 4 x PCI ISA & 4 x PCI ISA & 4 x PCI ISA & 4 x PCI ISA & 4 x PCI ISA & 4 x PCI ISA & 4 x PCI
    Operating Temp. -20ºC to +71ºC -20ºC to +71ºC -40ºC to +85ºC -40ºC to +85ºC -40ºC to +85ºC -40ºC to +85ºC -40ºC to +85ºC
    Input Power +5VDC +/-5% @ 2.6A +5VDC +/-5% @ 7.2A +5VDC +/-5% @ 7.2A +5VDC +/-5% @ 7.2A +5VDC +/-5% @ 7.2A +5VDC +/-5% @ 7.2A +5VDC +/-5% @ 7.2A
    Power Consumption-idle 9W 12W 12W 12W 12W 12W 12W
    Power Consumption-heavily loaded 13W 41W 24W 17W 22W 16W 13W
    Dimensions (L x W) 4.5" x 3.7"
    (114mm x 95mm)
    4.5" x 3.7"
    (114mm x 95mm)
    4.5" x 3.7"
    (114mm x 95mm)
    4.5" x 3.7"
    (114mm x 95mm)
    4.5" x 3.7"
    (114mm x 95mm)
    4.5" x 3.7"
    (114mm x 95mm)
    4.5" x 3.7"
    (114mm x 95mm)
    Weight 2.65oz (75g) 2.65oz (75g) 2.65oz (75g) 2.65oz (75g) 2.65oz (75g) 2.65oz (75g) 2.65oz (75g)
    RoHS Compliant Compliant Compliant Compliant Compliant Compliant Compliant

    top
    Get an online quote


    ETX Computer-on-Modules
    available models:
    6884011
    Heatsink for ETX-N270-1600 CPUs
    6884012
    Heatspreader for ETX-N270-1600 CPUs
    6884020
    Heatspreader for ETX-945-xxxxx CPUs
    6884022
    Heatsink with fan for ETX-945-xxxxx CPUs
    6884024
    Heatsink with fan for socketed ETX-945-xxxxx CPUs
    PLT-BASE
    ETX form-factor baseboard for ETX COMs with PC/104-Plus expansion
