Products   >   I/O Expansion Modules   >   Digital I/O Modules   >   FP-GPIO96 Digital I/O Module

FP-GPIO96 Digital I/O Module

Programmable Digital I/O FeaturePak Module with Customizable Personality

FP-GPIO96 Digital I/O Module
(click to enlarge)
Description
Block Diagram
About the FeaturePak standard
Specifications
Get an online quote
Customize Me

top
Description

FP-GPIO96 is a general purpose I/O FeaturePak module using a high-capacity (700K gate equivalent) PCI Express FPGA for maximum density and flexibility. The base hardware configuration features 96 digital I/O lines grouped into 12 8-bit ports. All ports have I/O buffers to protect the FPGA and feature 5V logic drive levels. The ports are organized into a combination of byte-wide, nibble-wide, and bit-wide direction control for maximum flexibility and application compatibility.

The built-in FPGA personality provides multiple configuration options. All 96 I/O lines may be used in common I/O mode; Six of these ports can be reconfigured to enable an array of additional features, including 8 32-bit up/down counter/timers with programmable input source and gate, 4 24-bit PWM circuits with 0-100% duty cycle capability and interrupt/latched mode operation.

The flash-based design enables easy field upgrades using a Diamond-provided software utility (no cable or third-party software required!) as well as custom code development. Universal Driver software support (described below) is included for Linux, Windows XP, Windows Embedded CE/Standard.

top
Block Diagram

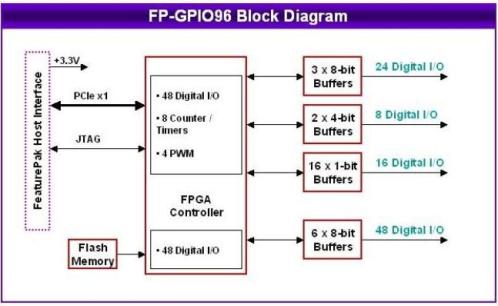

FP-GPIO96 Block Diagram: click to enlarge

top
Universal Driver Software

Diamond's exclusive Universal Driver Software is included at no charge along with the FP-GPIO96 I/O module. It provides a high-level programming library for all of our I/O boards, as well as for the data acquisition circuitry on our SBCs and Embedded-Ready Subsystems. All data acquisition features are supported by easy-to-use function calls, resulting in a reduced learning curve and shortened application development time. The Universal Driver works with Linux and Windows XP. Application examples and projects are included for each function, each board, and each operating system, in order to provide a quick starting point for learning and development. Learn more about our Universal Driver software here.

top
About the FeaturePak embedded I/O standard

FP-DAQ1616 Analog I/O Module
FeaturePak dimensions
(click to enlarge)
The FeaturePak™ Trade Association, originated by Diamond Systems, was launched at the Embedded World tradeshow in March, 2010. The FeaturePak Specification defines a highly-compact, low-profile, and inexpensive way to add configurable I/O functions to embedded systems. The tiny FeaturePak modules -- measuring just 1.70 x 2.55 inches (see photo at right) -- can be used for providing snap-in options or upgrades for off-the-shelf single board computers (SBCs) and computer-on-module (COM) baseboards, or as building blocks to simplify the development of fully-custom embedded electronics. Additionally, FeaturePak modules provide "zero height expansion," in that they fit within the normal component envelope of an SBC or COM baseboard and add no height to PC/104-style I/O expansion stacks. Learn more about the FeaturePak embedded I/O expansion standard here.

top
Specifications

Base FPGA LatticeECP3, 700K gate equivalents
Input clock 50MHz
FPGA code storage Flash memory, field upgradeable via JTAG
Total I/O lines on FeaturePak connector 96
Primary I/O 48 lines with 3 8-bit and 2 4-bit; configurable pull-up/down resistors
Secondary I/O 48 lines with 6 8-bit buffers; configurable pull-up/down resistors
Counter/timers 8 32-bit up/down counters (alternate mode)
Max counting frequency (coming soon)
Counter modes Counter, rate/square-wave generator, pulse-width modulator, programmable one-shot, hardware/software triggered strobe
Output current Ports A, B & D: 24mA per pin max; 200mA per port max
Port C low: 24mA per pin max
Port C high: -24mA per pin max
Ports E & F: 32mA per pin max
Input current +/-340uA max
FeaturePak Compliant, zero height expansion
Dimensions 1.70 x 2.55 in. (43 x 65 mm); FeaturePak form-factor
Power supply 3.3VDC 5%
Operating temperature -40C to +85C standard
Weight 0.5 oz (14 g)
RoHS Compliant

FeaturePak Resource Label

FeaturePak

FEATURES
FPGA-based design with in-the-field reconfigurability
96 buffered, programmable digital I/O
Byte-wide, nibble-wide and bit-wide port direction control
5V logic level
8 32-bit counter/timers
4 24-bit pulse-width modulators
1 PCI Express x1 lane host interface
FeaturePak form-factor compliant
Zero height expansion module
-40C to +85C operating temperature
Universal Driver software support
ACCESSORIES
You may also find the following products of interest:
Magellan COM Express SBC
P104-GPIO96 Digital I/O Module

This product can be customized and ruggedized. Click here for more information.
ONLINE SUPPORT
See FP-GPIO96 Digital I/O Module Technical Resources
Request Product information
Request Technical Support
DOWNLOADS
FP-GPIO96 User Manual
(.pdf, 822.4 kb)
FeaturePak Brochure
(.pdf, 596.4 kb)
About the FeaturePak Standard
(.html, 0.5 kb)



top
Get an online quote


FP-GPIO96 Digital I/O Module
available models:
FP-GPIO96
FeaturePak Programmable GPIO Module with standard personality
Please login or signup for an online quote request.
