Products   >   Power Supplies   >   Power Supplies   >   Jupiter-MM-7000 Series

Jupiter-MM-7000 Series

JMM 7000™ Rugged PC/104 Power Supplies

Jupiter-MM-7000 Series Jupiter-MM-7000 Series
JMM-7312 ISO UPS Military Grade with Isolation JMM-7312 UPS Military Grade Non Isolated

Description

The JMM-7000 family provides compact, rugged, MIL-compliant DC power in the popular PC/104 form factor (3.6 x 3.8"/90 x 96 mm). JMM-7000 models offer compliance to a range of standards, including MIL-STD-461, MIL-STD-704, MIL-STD-1275, MIL-STD-810G, and DO-160. Optional 500V isolation, brownout protection, and supercapacitor-based UPS enhance these supplies' utility in compact airborne, land, and sea vehicle electronic systems.

The JMM 7300 series provides full MIL standards compliance The depopulated JMM 7000 series are intended for use in commercial industrial applications where backup power or isolated power is required

Integrated heat spreader supplied with all models

top
Available Models

Model461 Filter704 / 1275UPSVoutPowerIsolatedDescription
JMM-7312-ISO-UPS12V40WFull feature 12V
JMM-7305-ISO-UPS5V40WFull feature 5V
JMM-7312-UPS12V40WFull feature 12V without isolation
JMM-7305-UPS5V25WFull feature 5V without isolation
JMM-731212V40WMIL compliant non-isolated 12V
JMM-73055V25WMIL compliant non-isolated 5V
JMM-7012-ISO12V40WBasic isolated 12V power
JMM-7005-ISO5V40WBasic isolated 5V power
JMM-7012-UPS12V40WBasic 12V power with UPS
JMM-7005-UPS5V25WBasic 5V power with UPS

top
Block Diagram



top
SuperCapacitor Backup

The SEP-7000 series of PC/104-sized supercapacitor energy packs is designed for use with the JMM-7000 power supplies with UPS option. These packs provide up to 3300 joules (wattsec) of backup energy to maintain stable system operation in case of power interruption. The charge / backup controller on the JMM-7000 utilizes a new supercapacitor charging technology that automatically controls the charging current and voltage of each capacitor bank in the pack to avoid overcharging or other potentially damaging fault conditions. Charge / discharge status and other control functions are available via LEDs on the JMM-7000 and via USB connection to the host CPU.

SEP-7000 energy packs are available in two capacities and two configurations. A plug-on configuration mounts directly to the bottom side of the JMM-7000 to eliminate cables and create the most compact, rugged solution. A cable-connected configuration allows the energy packs to be positioned at a remote location to fit varying application requirements.

ModelEnergy StorageDescription
SEP-7001-CC1700JCable connection
SEP-7001-SH1700JPlug-on direct mount
SEP-7002-CC3300JCable connection
SEP-7002-SH3300JPlug-on direct mount

ApplicationPower
Requirement
Holdup Time
(SEP-7002)
Ethernet switch or low-power SBC10W300 sec
Core i7 SBC with peripherals20W150 sec
High performance system
with heavy I/O
or communications content
40W75 sec

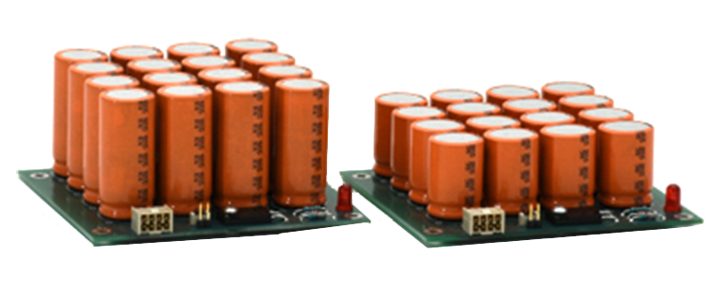

SEP-7002-CC (left), SEP-7001-CC (right)

top
Get an online quote


Jupiter-MM-7000 Series
available models:
JMM-7312-ISO-UPS
Full feature 12V
JMM-7305-ISO-UPS
Full feature 5V
JMM-7312-UPS
Full feature 12V without isolation
JMM-7305-UPS
Full feature 5V without isolation
JMM-7312
MIL compliant non-isolated 12V
JMM-7305
MIL compliant non-isolated 5V
JMM-7012-ISO
Basic isolated 12V power
JMM-7005-ISO
Basic isolated 5V power
JMM-7012-UPS
Basic 12V power with UPS
JMM-7005-UPS
Basic 5V power with UPS
SEP-7001-CC
Cable connection
SEP-7001-SH
Plug-on direct mount
SEP-7002-CC
Cable connection
SEP-7002-SH
Plug-on direct mount
Please login or signup for an online quote request.
FEATURES
Cost-effective, highly flexible power solution
Multiple output options:
     12VDC output, 40W, 500VDC isolation
     5VDC output, 25W, 500VDC isolation
     5-28VDC output, 40W, non-isolated
EMI compatibility to MIL-STD-461C/D/E/F and DO-160C/D/E/F/G requirements
Input immunity per MIL-STD704A/D/E/F, MIL-STD-1275A/B, and DO-160 cat A, B, and Z
Transient protection: 100VDC / 50ms, 600VDC / 20us spikes
Brownout protection: 6VDC / 1 sec
Reverse polarity protection
Designed to meet MIL-STD-810G shock/vibration specifications
Optional UPS backup system using plug-on high-efficiency supercapacitor energy packs
Built-in microcontroller provides real-time status of power supply and backup energy bank
9-36VDC input, 2A max
3.55 x 3.775” (90 x 96mm) PC/104 form factor
-40 to +85°C operating temperature
