Products   >   Ruggedized Systems   >   Octavio
FEATURES
CPU Features
1GHz Intel E640T CPU or
800MHz Vortex86DX CPU
1GB or 256MB memory soldered on-board
1 Gigabit or 1 10/100Base-T Ethernet
VGA CRT display
4 RS-232 serial ports
Some ports RS-422/485 configurable
4 USB 1.1 or 2.0 ports
PS/2 keyboard/mouse ports
Real-time clock
Watchdog timer
-40ºC to +85ºC fanless operation
Data Acquisition Features
16 analog inputs, 16-bit A/D
Up to 250KHz maximum sampling rate
Interrupt-based A/D sampling with 2048 FIFO
Programmable input ranges
4 analog outputs, 12-bit D/A
Up to 40 programmable digital I/O
2 programmable counter/timers
Supported by Universal Driver software
RELATED PRODUCTS
You may also find the following products of interest:
Athena III PC/104 SBC
Helios PC/104 SBC

This product can be customized and ruggedized. Click here for more information.
ONLINE SUPPORT
See Octavio Ruggedized Systems Technical Resources
Request Product information
Request Technical Support
DOWNLOADS
Octavio-HLV Datasheet
(.pdf, 232.1 kb)
Octavio-ATHM Datasheet
(.pdf, 255.8 kb)
Athena III Datasheet
(.pdf, 327.1 kb)
Helios Datasheet
(.pdf, 189.9 kb)
Octavio-ATHM Ordering Guide
(.pdf, 290.5 kb)
Octavio-HLV Ordering Guide
(.pdf, 288.4 kb)
Octavio-HLV User Manual
(.pdf, 1,013.8 kb)
Octavio-ATHM User Manual
(.pdf, 975.3 kb)
Helios User Manual
(.pdf, 2.1 MB)
Athena III User Manual
(.pdf, 1.8 MB)
Octavio Enabling Console Redirection App Note
(.pdf, 261.6 kb)

Octavio Ruggedized Systems

Low Power Embedded Application Servers

Octavio Ruggedized Systems
click for a larger image
System Block Diagram
Integrated Data Acquisition
Software
Configuration Information
Specifications
Request a quote
Customize Me
Features Benefits
Smallest embedded server with data acquisition Maximized features in a very compact enclosure
Thinnest embedded system with DAQ
Low-power Intel E-Series or Vortex86DX processor High computing power with reduced power consumption
Bootable Linux 2.6 image pre-loaded Ready to run out of the box
Minimize set up time and maximize development time
Integrated VGA CRT, Ethernet, and system I/O Small size
Light weight
Integrated data acquisition Compact solution for increased reliability
Guaranteed compatibility
Highly resistant to shock and vibration
Minimal internal cabling
No rotating parts
Ultra-rugged solution
Increased reliability
-40ºC to +85ºC fanless operation Operates in extreme environments
From the Arctic to the Sahara, even in outer space
Compact standalone or wall mount enclosure Easily mountable in small spaces


Description

The Octavio embedded application servers are based on a mid-performance PC/104 form factor single board computers combining a low power, highly integrated CPU with Diamond Systems' renowned high-accuracy data acquisition circuitry on a single board. Octavio servers are powered by either an integrated Athena III (OCTAVIO-ATHE) or Helios (OCTAVIO-HLV) single board computer.

Octavio systems come with 256MB or 1GB of soldered DRAM for increased resistance to shock and vibration. They also have a solid state flashdisk pre-loaded with a bootable Linux image and Diamond Systems' Universal Driver data acquisition programming software.

Octavio incorporates advanced features such as four USB ports, one Gigabit or 10/100Base-T Ethernet interface, four serial ports, VGA graphics, and PS/2 keyboard and mouse interfaces.

The Octavio enclosure is compact, light weight, and rugged. All system I/O is brought out to the front in the form of industry standard connectors. The internal structure of the enclosure eliminates most internal cables, improving reliability of the system.

All Octavio servers are extremely rugged and have an operating temperature range of -40ºC to +85ºC.

top

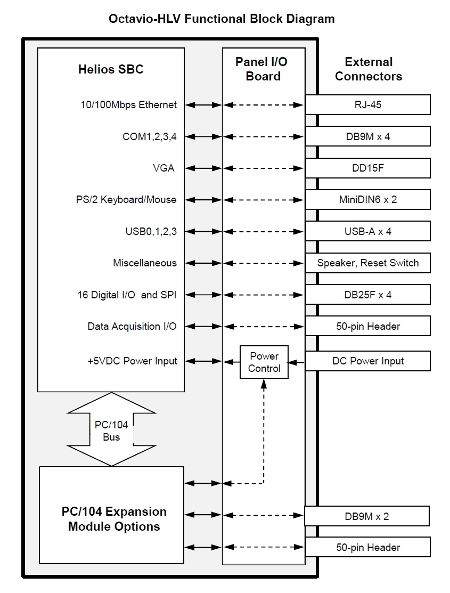

System Block Diagram


(click image to enlarge)

For block diagrams of the embedded single board computer functions please refer to the Athena III or Helios web pages.

top
Integrated Data Acquisition

The optional data acquisition circuit provides high-accuracy, stable 16-bit A/D performance with up to 250KHz sample rate, wide input voltage capability up to +/-10V, and programmable input ranges. It includes 4 12-bit D/A channels, up to 40 programmable digital I/O lines, and two programmable counter/timers. A/D operation is enhanced by on-board FIFO with interrupt-based transfers, internal/external A/D triggering, and on-board A/D sample rate clock. The design of the analog circuitry ensures low-noise performance for critical applications. All data acquisition features are fully supported by our Universal Driver software to simplify application development.

For more detailed Octavio data acquisition information, please refer to the Athena III or Helios single board computer web pages.

top
Software

Octavio embedded application servers come with an integrated solid state flashdisk pre-loaded with a Linux 2.6.23 bootable image and Diamond Systems' Universal Driver software version 6.02 for controlling the data acquisition circuitry. The flashdisk size can be specified when ordering.

top
Configuration Information

Octavio embedded application servers are configurable to meet the needs of your particular application. Many aspects of the system are configurable and are specified at the time of order. Octavio systems are ordered using the nomenclature OCTAVIO-P-F-D-S-R where the following configurable system attributes are defined as follows.

  • P = single board computer model
  • F = flashdisk size
  • D = optional integrated power supply
  • S = enclosure height
  • R = optional DIN rail adapter

The following sections describe these configuration options in more detail.

P: Single Board Computer Options

Several single board computer options exist that allow you to select the right balance of power and performance for your application, as well as whether to include the on-board data acquisition circuitry or not. For more detailed information on these SBCs, please visit our Athena II or Helios webpages.

P: SBC Options Description
AEA Athena III SBC with 1GHz Intel E640T CPU and data acquisition
AED Athena III SBC with 1GHz Intel E640T CPU and no data acquisition
H8A Helios SBC with 800MHz Vortex86DX CPU and data acquisition
H8D Helios SBC with 800MHz Vortex86DX CPU and no data acquisition


F: Flashdisk Options

The size of the integrated flashdisk can be specified to give you enough room on-board for your application, thus eliminating the need for an additional hard drive. All flashdisks come with a Linux 2.6.23 bootable image and Diamond's Universal Driver 6.02 software pre-loaded.

F: Flashdisk Options Description
AU8G 8GB USB flashdisk for the Athena III SBC
HL128 128MB IDE flashdisk for the Helios SBC
HL1G 1GB IDE flashdisk for the Helios SBC


D: Integrated Power Supply Options

An integrated power supply can be added to the Octavio system, allowing Octavio to operate in environments where +5V is not accessible. A 25W or 50W power supply can be selected. For more detailed information on these power supply modules, please visit our 25W Jupiter-MM-LP power supply or 50W Jupiter-MM power supply webpages. When a power supply is added to the system, the enclosure must be at least 3" in height.

D: Power Supply Options Description
00 No integrated power supply
LP 25 watt integrated DC/DC power supply
J5 50 watt integrated DC/DC power supply


S: Case Height Options

The Octavio case comes in several different heights for I/O expansion. The standard case height is 1.7" for the basic system. If an integrated power supply is added, the case must be at least 3" in height. Octavio-ATHE systems must order option 30.

S: Case Height Options Description
17 1.7" case height
30 3.0" case height
50 5.0" case height
70 7.0" case height


R: DIN Rail Options

A DIN rail adapter may be added to the Octavio system.

R: DIN Rail Options Description
00 No DIN rail adapter
DR DIN Rail Adapter Kit


Other System Options

Octavio systems come in standard, default configurations for various system aspects such as serial port configuration. Some of these may be configured to your specifications during manufacturing. The following options are available. When placing an order, please print out the Octavio Configuration Request Form, complete it and return to Diamond as instructed.

Other System Options Available Options (model dependent)
Serial Port Configuration RS-232/422/485 selection
IRQ settings
Data Acquisition Configuration Modes
Polarity
Interrupts
Console Re-Direction Console re-direction turned off or on


Custom Octavio Systems

Customized Octavio embedded application servers can also be created to perfectly match the requirements of your application. Customization options can include the following. Please contact Diamond Systems to request a custom Octavio quote.

Customization Possibilities
Add an integrated 80GB hard disk drive
Integrate any of Diamond's PC/104 I/O modules
(height of enclosure may change)
Substitute Windows CE for Linux operating system (Helios SBC models only)
Substitute QNX for Linux operating system (Athena II SBC models only)


top
Specifications

CPU and System ATHE1000A-1G ATHE1000D-1G HLV800-256AV HLV800-256DV
Processor 1GHz Intel E640T 1GHz Intel E640T 800MHz Vortex86DX 800MHz Vortex86DX
Power Consumption 9.4 watts 9.0 watts 5 watts 4.6 watts
Cooling Heat sink, fan-less Heat sink, fan-less Heat sink, fan-less Heat sink, fan-less
Display Chipset Intel E640T CPU Intel E640T CPU XGI Volari Z9S with 2D acceleration XGI Volari Z9S with 2D acceleration
Display Type & Resolution VGA CRT Up to 1600x1200 VGA CRT Up to 1600x1200 VGA CRT Up to 1600x1200 VGA CRT Up to 1600x1200
Display Memory 8/16/32MB shared with system memory 8/16/32MB shared with system memory Dedicated 32MB video memory Dedicated 32MB video memory
System Memory 1GB soldered on board 1GB soldered on board 256MB soldered on board 256MB soldered on board
Mass Storage Solid state USB flashdisk, up to 16GB, mounted on board Solid state USB flashdisk, up to 16GB, mounted on board Solid state IDE flashdisk, up to 1GB, mounted on board Solid state IDE flashdisk, up to 1GB, mounted on board
Ethernet Intel 82574ITMAC/PHY
10/100/1000Base-T
Intel 82574ITMAC/PHY
10/100/1000Base-T
Integrated in Vortex86DX
10/100Base-T
Integrated in Vortex86DX
10/100Base-T
Serial Ports 4 RS-232/422/485
Up to 115.2kbps, 16-byte FIFO, 16C450 compatible
Up to 460.8kbps, 128-byte FIFO, 16C2850 UART
4 RS-232/422/485
Up to 115.2kbps, 16-byte FIFO, 16C450 compatible
Up to 460.8kbps, 128-byte FIFO, 16C2850 UART
2x RS-232, 2 RS-232/422/485
Up to 115.2kbps, 16-byte FIFO, 16C550 compatible
Up to 460.8kbps, 128-byte FIFO, 16C2850 UART
2x RS-232, 2 RS-232/422/485
Up to 115.2kbps, 16-byte FIFO, 16C550 compatible
Up to 460.8kbps, 128-byte FIFO, 16C2850 UART
USB Ports 4x version 2.0 4x version 2.0 4x version 2.0 4x version 2.0
PS/2 2 ports for keyboard & mouse 2 ports for keyboard & mouse 2 ports for keyboard & mouse 2 ports for keyboard & mouse
Data Acquisition
Analog Inputs 16 single-ended / 8 differential   16 single-ended / 8 differential
A/D Resolution/Speed 16 bits, 200KHz maximum   16 bits, 250KHz maximum
Input Ranges +/-10V, +/-5V, +/-2.5V, +/-1.25V
0-10V, 0-5V, 0-2.5V, 0-1.25V
  +/-10V, +/-5V, +/-2.5V, +/-1.25V, 0-10V, 0-5V, 0-2.5V
Analog Outputs 4, 12-bit resolution   4, 12-bit resolution
Output Ranges +/-10V, +/-5V, 0-10V, 0-5V   +/-10V, +/-5V, 0-10V, 0-5V
Digital I/O 24 DIO lines   40 DIO lines 16 DIO lines
Counter/Timers 1 24-bit and 1 16-bit
A/D sample rate control, programmable interrupts
  1 24-bit and 1 16-bit
A/D sample rate control, programmable interrupts

General
Operating Temperature -40ºC to +85ºC -40ºC to +85ºC -40ºC to +85ºC -40ºC to +85ºC
Power Supply +5VDC +/-5% @ 2.0A +5VDC +/-5% @ 2.0A +5VDC +/-5% @ 1.0A +5VDC +/-5% @ 1.0A
Dimensions (default height) 5.5"W x 5.75"L x 1.7"H 5.5"W x 5.75"L x 1.7"H 5.5"W x 5.75"L x 1.7"H 5.5"W x 5.75"L x 1.7"H
Weight 30.4oz / 861.8g 30.0oz / 850.5g 28.6oz / 810.8g 28.2oz / 799.5g
RoHS Compliant Compliant Compliant Compliant

top
Get a quote

To request a quote, please download one of the following Octavio Ordering Guides, fill out and return the Octavio Quote Request Form to Diamond Systems as instructed.
