Products   >   Enclosures & Accessories   >   Enclosures   >   Pandora Enclosure for Diamond SBCs
FEATURES
For use with Athena III, Aurora, Helios and Rhodeus SBCs with appropriate panel I/O board
Easy assembly - no internal cables required
No internal mounting rails or corner guides
Pretapped screw holes for clean, professional assembly
Available in several sizes to accommodate extra PC/104 boards
Fits notebook hard drive in addition to boards
Isolation-mount option
All hardware included
RELATED PRODUCTS
Pandora enclosures are available for these Diamond SBCs:
Athena III PC/104 SBC
Aurora PC/104 SBC
Helios PC/104 SBC
Rhodeus PC/104 SBC

Pre-configured Octavio systems are also available featuring these SBCs in the Pandora enclosure.

This product can be customized and ruggedized. Click here for more information.

ONLINE SUPPORT
See Pandora Enclosure for Diamond SBCs Technical Resources
Request Product information
Request Technical Support
DOWNLOADS
Pandora Datasheet
(.pdf, 170.7 kb)
Pandora User Manual v1.2
(.pdf, 912.5 kb)
Rhodeus Panel I/O Board User Manual
(.pdf, 728.9 kb)
Helios Panel I/O Board User Manual
(.pdf, 534.5 kb)
Aurora Panel I/O Board User Manual
(.pdf, 703.0 kb)
Pandora Assembly Instructions
(.pdf, 831.1 kb)
Athena III Panel I/O Board User Manual
(.pdf, 459.9 kb)
Pandora Blank End Cap Drawing
(.pdf, 25.6 kb)
Pandora rear panel drawing
(.pdf, 27.3 kb)
Pandora case body drawing
(.pdf, 395.0 kb)
Pandora Front Panel for Helios
(.pdf, 68.9 kb)

Pandora Enclosure for Diamond SBCs

Rugged enclosure for Diamond Systems PC/104 SBCs: Athena III, Aurora, Helios & Rhodeus

Also available in generic PC/104 version

Pandora Enclosure for Diamond SBCs
click for a larger image
Description
Panel I/O Board
Pandora Case
The PC/104 System with UPS
Ordering Guide
Get an online quote
Customize Me


Description

Pandora is a compact, light weight, rugged enclosure system for Diamond Systems’ PC/104 form factor single board computers. Pandora offers a unique approach to packaging by eliminating most internal cables. This speeds up the assembly process and improves reliability and ruggedness.

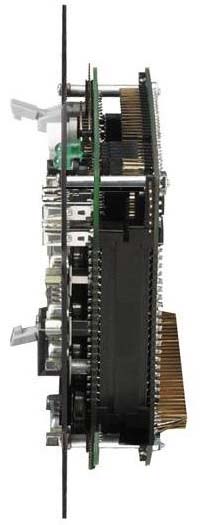

In the Pandora system, one end cap serves as a base plate on which the PC/104 stack is assembled with the panel I/O board atop the stack. Once the stack is complete, it is inserted into the enclosure and bolted into place with direct connections to both the top and bottom of the enclosure for extra rigidity. The rear/bottom panel provides convenient holes for mounting the stack.

The Pandora enclosure, coupled with the panel I/O board, features fast and easy assembly because most or all internal cables can be eliminated. Rather than requiring the installation of special corner mounts or forcing the stack into a set of corner guides, the entire stack is bolted directly to the front plate of the case, forming a rugged, easily-handled assembly.

top
Panel I/O Board

Our unique Panel I/O Board system is offered on most of our PC/104 single board computers and provides industry standard I/O connectors for the I/O, including CRT, Ethernet, USB, Serial, Parallel, PS/2, and data acquisition. Status LEDs and PC speaker are also included.

For use with Aurora SBCs is the Aurora panel I/O board, PNL-AUR-01. For use with Athena III SBCs is the PNL-ATHE-01 panel I/O board. For use with Helios SBCs is the Helios panel I/O board, PNL-HLV-01. For use with Rhodeus SBCs is the Rhodeus panel I/O board, PNL-RDS-01.

The panel I/O board can also accommodate I/O output from one or two add-on PC/104 modules without requiring costly and time consuming custom enclosure design. One pin header can be used with any PC/104 board with a 50-pin I/O connector.

Power input is through a 4-pin Molex connector. Both regulated 5V and unregulated 7VDC-28VDC inputs are supported. An on-off power switch is provided.

top
Pandora Case

The PC/104 Pandora case measures 5.5" wide by 5.75" high. It comes in four lengths:

  • The 1.7"(43.18mm) case accommodates the SBC, the panel I/O board, and an optional notebook hard drive.
  • The 3.0"(76.2mm) case accommodates the SBC, panel I/O board, up to two additional PC/104 boards, and an optional notebook hard drive.
  • The 5.0"(127mm) case accommodates the SBC, panel I/O board, up to five additional PC/104 boards,
    and an optional notebook hard drive.
  • The 7.0"(178mm) case accommodates the SBC, panel I/O board, up to seven additional PC/104
    boards, and an optional notebook hard drive.

PBEC-00-K: Blank end plate


PBEC-01-K: Top of stack end plate


PBEC-02-K: Bottom of stack end plate


PBEC-14-K: Front cap for PNL-HLV-01 Panel I/O Board


PBEC-15-K: Front cap for PNL-RDS-01 Panel I/O Board


PBEC-16-K: Rear cap for Rhodeus SBC


PBEC-19-K: Front cap for PNL-AUR-01 Panel I/O Board


PBEC-20-K: Rear cap for Aurora SBC


PBEC-21-301: Front cap for PNL-ATHE-01 Panel I/O Board


Interior view of Pandora case showing ACC-HDDMOUNT accessory board for mounting a notebook hard drive conveniently on the PC/104 stack.

Case lengths accommodate PC/104 boards with stackthrough configuration (long pins on the bottom side) at the bottom of the stack so no special effort is required to obtain non-stackthrough boards or to cut the connector pins. The length is also sufficient to enable mounting a notebook hard drive below the bottom board and attaching it to the rear end plate.

The 3.0" length is designed with the intention of accommodating two additional boards. A typical configuration might include a VGA board and a DC/DC power supply for use in mobile applications. However any two boards can be installed.

The interior cavity is wide enough to install any PC/104 board with almost any I/O connector, including pin headers with ejector latches.

Each Pandora case includes case body, front plate to accommodate the panel board, rear plate, and all mounting hardware (screws and spacers). Additional end plates are available separately.


Assembly Method

Installation of boards inside Pandora is as follows. The panel I/O board first mounts on top of the SBC. Spacers are installed between the two boards and above the panel board. The panel board is then fitted to the case front plate and attached using 4 screws driven into the spacers as well as screwlocks driven into the 7 Dsub connectors on the panel board. In this fashion the entire SBC assembly is mounted directly and securely to the end plate. This assembly can now be easily attached to the front of the case body using 8 flathead screws. (All necessary hardware is provided with the case and/or the panel I/O board.) The rear plate can now be attached with 8 more screws, and the assembly is complete.


Pandora Cross Section Drawings

The following cross-section drawings illustrate the relative positions of the components inside the 1.7" and larger cases. These can serve as a quick overview of the proper assembly method. We recommend you start with the face plate and work your way down to ensure that all the mounting hardware aligns properly.











Front and Rear End Plates

The standard Pandora package includes a front end plate containing cutouts for use with the panel I/O board specific to the SBC (models with and without the data acquisition cutout are available). The rear end plate contains PC/104 mounting holes that may be used to attach to the bottom of the stack using additional spacers if desired for extra rigidity, although for a 2-board system these are not needed. The lengths of the cases have been selected to allow the use of standard PC/104 spacers, such as Diamond Systems' SPC-104.

Each Pandora case includes a case body, front plate to accommodate the panel I/O board, rear plate, and all mounting hardware (screws and spacers). Additional end plates are available separately.

top
The PC/104 System with UPS


This PC/104 system with UPS

  • PC/104 SBC with data acquisition
  • HESC-104 power supply with battery charger
  • BAT104-NiMh backup battery

...fits into this compact Pandora enclosure!

  • Dimensions 5.5" x 5.75" x 3.0"
  • Quick, rugged assembly
  • Only 1 small cable is required!
    (Power input to HESC-104, battery to HESC-104)
  • -40ºC to +85ºC operation

PC/104 Stack Height (inches/mm)

# Boards 1st Board / Non-Stackthrough(inches/mms) 1st Board / Stackthrough (inches/mms)
1 0.60 / 15.2 0.92 / 23.4
2 1.26 / 32.1 1.58 / 40.2
3 1.92 / 48.9 2.24 / 57.0
4 2.59 / 65.7 2.91 / 73.8
5 3.25 / 82.5 3.57 / 90.6
6 3.91 / 99.3 4.23 / 107.4
7 4.57 / 116.1 4.89 / 124.3
8 5.23 / 132.9 5.55 / 141.1

top
Ordering Guide

Select length < L > in part numbers below:
< L >: 170 1.7" / 43mm
300 3.0" / 76mm
500 5.0" / 127mm
700 7.0" / 178mm
PB-< L >-K Pandora generic enclosure; specify length
PB-ATHE-300-K Pandora enclosure for Athena III SBCs
PB-AUR-170-K Pandora enclosure for Aurora SBCs
PB-HLV-< L >-K Pandora enclosure for Helios SBCs
PB-RDS-< L >-K Pandora enclosure for Rhodeus SBCs
PNL-ATHE-01 Panel I/O board for Athena III SBCs
PNL-AUR-01 Panel I/O board for Aurora SBCs
PNL-HLV-01 Panel I/O board for Helios SBCs
PNL-RDS-01 Panel I/O board for Rhodeus SBCs
PBEC-00-K Blank end cap
PBEC-01-K Blank front end cap with PC/104 mounting holes
PBEC-02-K Blank rear end cap with PC/104 mounting holes

top
Get an online quote


Pandora Enclosure for Diamond SBCs
available models:
PB-AUR-170-K
Pandora Enclosure, 1.7", with Aurora panel I/O board and front panel
PB-ATHE-300-301
Pandora Enclosure, 3.0", with panel I/O board and front panel for Athena III SBCs, blue
PB-HLV-170-K
Pandora Enclosure, 1.7", with Helios panel I/O board and front panel
PB-HLV-300-K
Pandora Enclosure, 3.0", with Helios panel I/O board and front panel
PB-HLV-500-K
Pandora Enclosure, 5.0", with Helios panel I/O board and front panel
PB-HLV-700-K
Pandora Enclosure, 7.0", with Helios panel I/O board and front panel
PB-RDS-170-K
Pandora Enclosure, 1.7", with Rhodeus panel I/O board and front panel
PB-RDS-300-K
Pandora Enclosure, 3.0", with Rhodeus panel I/O board and front panel
PB-RDS-500-K
Pandora Enclosure, 5.0", with Rhodeus panel I/O board and front panel
PB-RDS-700-K
Pandora Enclosure, 7.0", with Rhodeus panel I/O board and front panel
PNL-AUR-01
Aurora Panel I/O Board with mounting hardware
PNL-ATHE-01
Athena III Panel I/O Board with mounting hardware
PNL-HLV-02
Helios Panel I/O Board with mounting hardware
PNL-RDS-01
Rhodeus Panel I/O Board with mounting hardware
C-EAP-01
Cable, Centronics 50 pin to IDC 50 pin
PBEC-14-K
Pandora Helios Enclosure front end cap with cutouts and mounting holes for PNL-HLV-01
PBEC-15-K
Pandora Rhodeus enclosure front end cap with cutouts & mounting holes for PNL-RDS-01
PBEC-16-K
Pandora Rhodeus Rear / Wall Mount Panel, 4 holes
PBEC-19-K
Pandora Aurora enclosure front end cap with cutouts & mounting holes for PNL-AUR-01
PBEC-20-K
Pandora Aurora Rear / Wall Mount Panel, 4 holes
PBEC-21-301
Pandora Enclosure front end cap with cutouts and mounting holes for PNL-ATHE-01 panel board, blue, with silkscreen
PBEC-00-K
Pandora blank end cap, black
PBEC-01-K
Pandora blank front end cap with PC/104 mounting holes, black
PBEC-02-K
Pandora blank front end cap with PC/104 mounting holes, black
