Products   >   End-of-Life Products   >   Discontinued Products   >   Poseidon EPIC SBC
FEATURES
2-in-1 design incorporates CPU and data acquisition circuitry on a single board
EPIC form factor (115mm x 165mm)
PC/104-Plus expansion
Extended temperature operation: -40ºC to +75ºC
CPU Features
Choice of low power, fanless 1.0GHZ VIA Eden ULV CPU or high performance 2.0GHz VIA C7 CPU
512MB or 1GB 533MHz DDR2 RAM soldered on board
400MHz Front Side Bus
10/100/1000 BaseT (Gigabit) Ethernet
Advanced 2D/3D graphics engine with integral MPEG-2 hardware acceleration
CRT and 24-bit dual channel LVDS flat panel support
Dual Independent Display
4 USB 2.0 ports
4 RS-232 ports, 2 with RS-422/485 capability
PS/2 Keyboard / Mouse ports
S-ATA and UDMA-100 IDE interfaces
Amplified audio
22W - 31W power consumption
Data Acquisition Features
32 16-bit analog inputs
250KHz sampling rate
Auto-autocalibration
4 analog outputs, 12-bit D/A
24 programmable digital I/O lines
ONLINE SUPPORT
See Poseidon EPIC SBC Technical Resources
Request Product information
Request Technical Support
DOWNLOADS
Poseidon Datasheet
(.pdf, 393.5 kb)
Poseidon User Manual
(.pdf, 1.4 MB)
Poseidon Fast Start Guide
(.pdf, 1.1 MB)
Universal Driver Software
Universal Driver 5.92 for WinCE
(.zip, 97.4 kb)



Poseidon EPIC SBC

EPIC SBC with 1-2GHz VIA C7 CPU, On-Board Memory and Autocalibrating Data Acquisition

End of Life Product

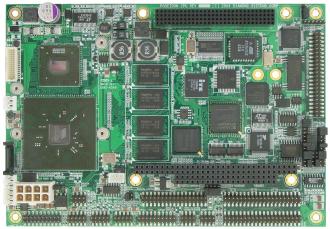

Poseidon EPIC SBC
click for a larger image
Description
System Block Diagram
Data Acquisition Circuit
Cables and Accessories
Development Kit
Specifications
Get an online quote


Description

Diamond's Poseidon is a high performance EPIC form factor single board computer combining state of the art CPU and peripheral technology with Diamond Systems renown high accuracy data acquisition circuitry on a single board. Poseidon utilizes the VIA C7® and VIA Eden® ULV based on the C5J “Esther” core, operating at speeds up to 2.0GHz. The 1.0GHz VIA Eden ULV version of Poseidon operates fanless over the extended operating temperature range of -40°C to +75°C. The 2.0GHz VIA C7 version of Poseidon operates with a fan from -40°C to +75°C.

Poseidon incorporates VIA’s advanced CX700 single chip digital media chipset, providing advanced features such as a 400MHz Front Side Bus (FSB), four USB 2.0 ports, S-ATA hard drive interface and advanced VIA UniChrome™ Pro 2D / 3D graphics with AGP 8x level performance and integral MPEG-2 hardware acceleration. The dual graphics display engines on Poseidon support Dual Independent Display functionality with simultaneous CRT and LVDS flat panel displays (up to dual channel 24-bit) which can display different images with different pixelization and different resolutions.

Like other Diamond Systems' SBCs, Poseidon features soldered DRAM for increased resistance to shock and vibration. Poseidon provides 512MB or 1GB of DDR2 DRAM operating at 533MHz.

Poseidon also provides an Intel 82541 Gigabit Ethernet controller, four RS-232 serial ports (two have RS-422/485 multiprotocol capability) and legacy keyboard / mouse and IDE hard drive interfaces.

top
System Block Diagram


Poseidon System Block Diagram

top
Integrated Data Acquisition

Poseidon’s integrated data acquisition functions incorporate the same circuitry as Diamond Systems’ DMM-32X-AT PC/104 module. It utilizes Diamond Systems’ patented Automatic Autocalibration technology to calibrate its A/D and D/A circuits automatically whenever required, without user intervention. This means you get analog I/O performance with the maximum possible accuracy over the life of the product, without doing anything at all.

Poseidon has 32 analog inputs with 16-bit A/D and 250KHz sample rate, 4 analog outputs with 12-bit D/A and 100KHz waveform output capability, 24 digital I/O lines, and 2 counter/timers. It supports both interrupt and DMA A/D transfers, and it uses an enhanced 1,024-sample FIFO with programmable threshold for maximum flexibility and data reliability. Diamond Systems' free Universal Driver programming software for Linux, Windows XP, Windows CE, and DOS.

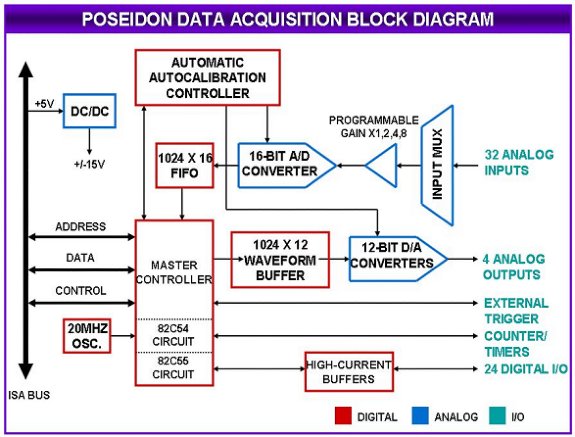

Poseidon Data Acquisition Circuit Block Diagram

top
Transition Cables or PC-Style Connectors

To enhance the use of Poseidon in harsh environments requiring outstanding resistance to shock and vibration, Poseidon is engineered with all on-board I/O brought to pin headers within the I/O zones identified in the EPIC specification. I/O that can utilize PC-style connectors is placed such that a small I/O Panel Board can be utilized to instantly convert Poseidon to PC-style connectors for use in a traditional enclosure.

Poseidon Cable Kit (C-PSD-KIT)

The Poseidon cable kit includes cables for all Poseidon I/O except LCD data and backlight, which are included in the LCD kit. A cable kit is strongly recommended for first-time buyers, as many cables are non-standard. All cables are also available individually. Once you know which cables your application requires, you can save money on future orders by purchasing only the ones you need.


Poseidon Cables

No. Qty. Cable Description
1 1 6981072 Analog I/O, 2mm IDC40 to 2mm IDC40
2 1 6981073 Digital I/O, 2mm IDC34 to 2mm IDC34
3 1 6981080 Ethernet, 2mm 2x5 crimp to RJ-45 socket
4 2 6981081 Dual Serial Port 2mm 2x10 to 2x DB9M
5 2 6981082 Dual USB, 2mm 2x5 to Dual USB
6 1 6981083 Keyboard/Mouse, 2mm 2x4 crimp to 2x Mini-DIN-6
7 1 6981084 VGA, 2mm 2x5 crimp to DD15F
8 1 6981085 Audio I/O, 2mm 2x5 crimp to 3x 3.5mm jack
9 1 6981087 Speaker Out, 2mm 2x4 crimp to tinned leads
10 1 6981088 Utilities, 2mm 2x4 crimp to flying leads
11 1 6981090 Power input, 2x4 high power to flying leads
12 1 6981091 Power input ATX, 2x4 high power to ATX 2x10
13 1 6981004 IDE, 44 conductor 2mm ribbon cable

Panel I/O Board


Poseidon Panel I/O Board

Front view of the panel I/O board

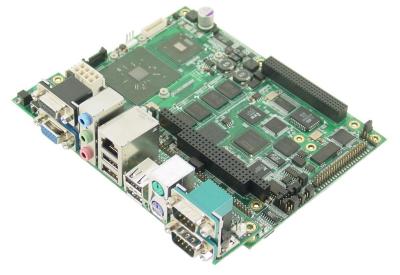

Poseidon I/O Panel Board

Angled view of the panel I/O board
mated to the Poseidon

Even with the Poseidon panel I/O board, transition cables may be required for power input or analog & digital I/O. The panel I/O board may be purchased seperately or with a cable kit customized for use with the panel I/O board. This Panel I/O Board Kit (PNL-PSD-Kit) contains:

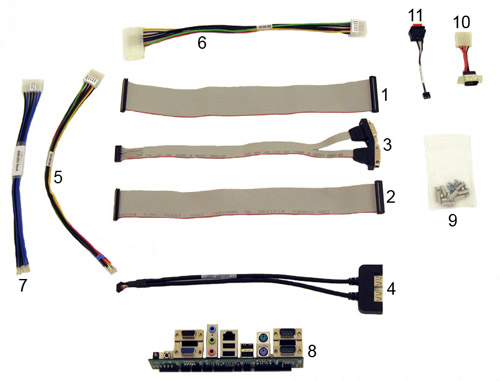

Panel Board Cables

Item Qty Part No. Description
1 1 6981072 Analog I/O, 2mm IDC40 to 2mm IDC40
2 1 6981073 Digital I/O, 2mm to 2mm IDC34
3 1 6981081 Dual Serial, 2mm to 2x DB9M
4 1 6981082 Dual USB, 2mm to dual USB A
5 1 6981090 Power input, 2x4 high power to flying leads
6 1 6981091 Power input ATX, 2x4 high power to ATX 2x10
7 1 6981092 Power out to P/S module, 1x6 .156" to flying leads
8 1 PNL-PSD-01 Panel I/O Board
9 1 6801020 Mounting hardware kit
10 1 6981093 Power adaptor, PS-5V-04 transition to DB9
11 1 6981094 Power switch, 2mm 2x4 crimp to power switch

top
Development Kits

Two development kits are available with all the hardware you need to get started on your embedded design project. The kits contain a SBC board, flashdisk module with Linux pre-installed, cable kit, panel I/O board and software CD.

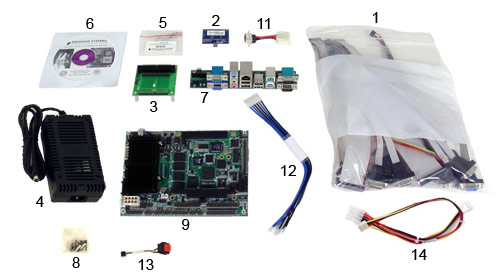

Poseidon Dev Kit

Item Qty Part No. Description
1 1 C-PSD-KIT Poseidon cable kit
2 1 DK-LINUX-PSD512 512MB IDE Flashdisk module with Linux development files
3 1 8180010 Flashdisk programming module
4 1 PS-5V-04 AC adaptor, 100 - 240VAC in, 5VDC/10A out
5 1 MTG104 PC/104 mounting hardware kit
6 1 6710010 Diamond Systems CD with driver software and manuals
7 1 PNL-PSD-01 Poseidon panel I/O board
8 1 6801020 Poseidon panel I/O board mounting hardware kit
9 1 PSDC20-1024A Poseidon SBC, 2.0GHz, 1GB DRAM, Data Acquisition
10 1 7461010 Poseidon QuickStart Guide
11 1 6981093 PS-5V-04 transition to PNL-PSD-01
12 1 6981092 Panel power to PS module
13 1 6981094 Power switch to panel board utility
14 1 6981006 Auxiliary power to 40-pin IDE device

top
Flashdisk Solid-State Storage

Install an IDE flashdisk module onto Poseidon for lightweight, rugged mass storage. The flashdisk module works like a hard drive and provides high-speed nonvolatile solid-state storage in sizes up to 4GB.

top
Triton Enclosure System

Poseidon fits perfectly inside our light weight, rugged Triton enclosure system. The standard face plate of the Triton supports all the I/O offered by the Poseidon.
Together, the Poseidon SBC of your choice and the Triton TRI-PSDA-KIT provide everything you need to configure a fully functioning system. A completely assembled system solution is also available. Click here for more details on the Triton enclosure system.

top
Specifications

CPU Specifications
Processor
VIA Eden ULVVIA C7
Speed
1.0GHz2.0GHz
Power Consumption
24W with DAQ, 22W no DAQ31W with DAQ, 29W no DAQ
Cooling
Heat sink, no fanHeatsink + fan
Operating Temperature
-40ºC to +75ºC-40ºC to +75ºC
Chipset VIA CX700
Front Side Bus 400MHz
SDRAM memory 512MB or 1GB 533MHz DDR2 soldered on-board
Bus Interface PC/104-Plus (ISA + PCI)
Display type CRT and / or 24-bit dual channel LVDS flat panel
CRT Resolution 2048 x 1536
Flat Panel Resolution UXGA 1600 x 1200
Video Memory 128MB UMA
USB Ports (4) USB 2.0
Serial ports (2) fixed RS-232
(2) configurable RS-232/485/422
Networking 10/100/1000 Base T Gigabit Ethernet
Mass Storage Interfaces (1) S-ATA
(1) IDE UDMA 100
Keyboard/Mouse PS/2
Audio AC’97, Line-in, Line-Out, MicAmplified speaker interface
Dimensions 4.528” x 6.496” (115mm x 165mm)
Weight PSDE10 - 256N 8.3 oz. PSDE10 - 256A 8.6 oz. PSDC20 - 512A 9.0 oz.
Input Power +5VDC ±5%
RoHS Compliant
Data Acquisition Specifications
Analog Inputs 32 single-ended, 16 differential, or 16 SE + 8 DI; user selectable
A/D resolution 16 bits
Bipolar ranges ±10V, ±5V, ±2.5V, ±1.25V, ±0.625V
Sample Rate 250KHz max total
Unipolar ranges 0-10V, 0-5V, 0-2.5V, 0-1.25V, 0-.625V,
Input bias current 100pA max
Protection ±35V on any analog input without damage
Input Impedance 1013 ohms
Nonlinearity ±3LSB, no missing codes
Conversion rate 250,000 samples/sec.max
On-board FIFO 1024 samples, programmable threshold
A/D and D/A Calibration Automatic using on-board microcontroller and temp sensor
Analog Outputs 4, 12-bit resolution
Output ranges ±5V, ±10V, 0-5V, 0-10V
Output current ±5mA max per channel
Settling time 6µS max to 0.01%
Relative accuracy ±1 LSB
Nonlinearity ±1 LSB, monotonic
Reset Reset to zero-scale or mid-scale (jumper selectable)
Waveform buffer 1,024 samples
Digital I/O Lines 24 programmable direction
Input voltage Logic 0: 0.0V min, 0.8V maxLogic 1: 2.0V min, 5.0V max
Input current ±1µA max
Output voltage Logic 0: 0.0V min, 0.33V maxLogic 1: 2.4V min, 5.0V max
Output current Logic 0: 64mA max per lineLogic 1: -15mA max per line
A/D Pacer clock 32-bit down counter (2 82C54 counters cascaded)
Clock source 10MHz on-board clock or external signal
General purpose 16-bit down counter (1 82C54 counter)

top
Get an online quote


Poseidon EPIC SBC
available models:
PSDC20-1024A
Poseidon SBC, 2.0GHz VIA C7, 1024MB RAM, with data acquisition
PSDC20-512A
Poseidon SBC, 2.0GHz VIA C7, 512MB RAM, data acquisition; Minimum Order Quantity of 50
PSDC20-512N
Poseidon SBC, 2.0GHz VIA C7, 512MB RAM, no data acquisition; Minimum Order Quantity of 50
PSDE10-512A
Poseidon SBC, 1.0GHz VIA Eden ULV, Data Acquisition, 512MB RAM
PSDE10-512N
Poseidon SBC, 1.0GHz VIA Eden ULV, no data acquisition, 512MB RAM
PSDE10-1024A
Poseidon SBC, 1.0GHz VIA C7, 1GB RAM, data acquisition; Minimum Order Quantity of 50
PSDE10-1024N
Poseidon SBC, 1.0GHz VIA C7, 1GB RAM, no data acquisition; Minimum Order Quantity of 50
DK-PSDC20-02
2.0GHz VIA C7 Poseidon Development Kit (with PSDC20-1024A)
DK-PSDE10-02
1.0GHz VIA Eden ULV Poseidon Development Kit (with PSDE10-512A)
C-PSD-KIT
Poseidon Cable Kit
PNL-PSD-01
Panel I/O board for Poseidon (includes mounting hardware)
PNL-PSD-KIT
Poseidon Panel I/O Board Kit, includes panel I/O board, mounting hardware, cables
SDK-PSD-QNX
Poseidon QNX Software Development Kit with 512MB flashdisk
