Products   >   End-of-Life Products   >   Discontinued Products   >   Corona WiFi & Ethernet Module
FEATURES
Features
802.11a/b/g wireless LAN
Up to 108Mbps transmit & receive rates
Average power up to 23dBm
WiFi support for Windows XP and Linux
Dual 10/100Base-T Ethernet ports
Dual USB 2.0 ports
SDVO to VGA converter
SUMIT-A and PC/104 (ISA) stackable expansion
-40ºC to +85ºC operation
ACCESSORIES
You may also find the following products of interest:
Aurora PC/104 SBC
Corona Cable Kit
SMA Wireless Antenna

This product can be customized and ruggedized. Click here for more information.
ONLINE SUPPORT
See Corona WiFi & Ethernet Module Technical Resources
Request Product information
Request Technical Support
DOWNLOADS
Corona SUMIT-ISM Communications Module Datasheet
(.pdf, 597.5 kb)
Corona SUMIT-ISM Communications Module User Manual
(.pdf, 758.5 kb)
Corona Windows XP WiFi Driver
(.zip, 43.3 MB)
Corona Windows XP Ethernet Driver
(.zip, 3.8 MB)

Corona WiFi & Ethernet Module

SUMIT-ISM Wireless and Ethernet Communications Module with SUMIT-A and PC/104 (ISA) Expandability

SUMIT-ISM

COR-LANWIFI-XT Model COR-LAN2-XT Model

COR-LANWIFI-XT Model

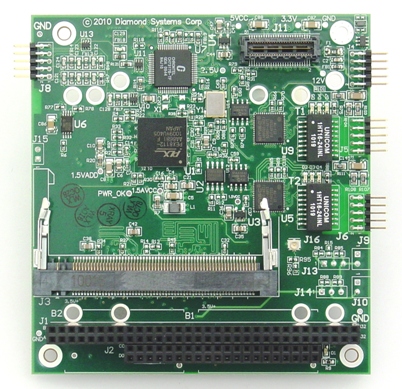

Click here for a larger image

COR-LAN2-XT Model
Click here for a larger image
Description
Block Diagram
Cable Kit
Specifications
Get an online quote
Customize Me


Description

Corona with antenna

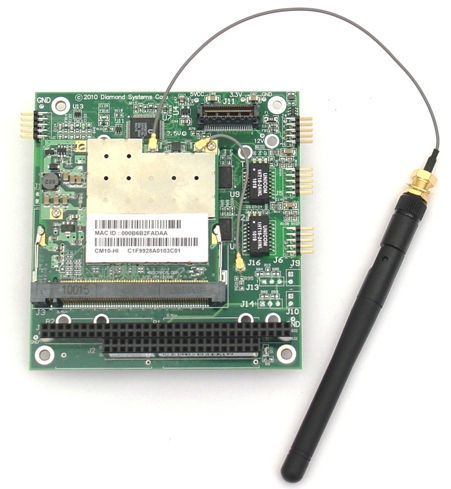

Corona SUMIT-ISM module with external antenna
(click to enlarge)
The Corona SUMIT-ISM Communications module features a WiFi card in the SUMIT-ISM Type I form factor. The product contains a WiFi LAN card connected via a mini-PCI socket, two 10/100Base-T Ethernet ports, two USB 2.0 ports if supported by the host system, an SDVO to VGA converter, and both a SUMIT-A connector and a PC/104 (ISA) connector for expansion. Click here for more information on the SUMIT industry standard.

The WiFi card is a dual channel/dual antenna mini-PCI IEEE 802.11a/b/g wireless LAN that supports up to 108Mbps transmit and receive rates. Its average power is up to 200mW with peak power up to 600mW.

The on-board dual 10/100Base-T Ethernet ports provide a high speed option for communication with remote hosts.

The SDVO to VGA converter is designed to accept the SDVO output from Diamond's Aurora single board computer and convert it to an analog VGA output.

Corona was designed with outdoor applications in mind. It is ideal for access point applications or a wide range of other embedded computing applications. Extended temperature operation of -40C to +85C is tested and guaranteed. The mini-PCI wireless module mounts securely to the carrier through a standoff and screw.

Corona has both SUMIT-A and PC/104 (ISA) stackthrough expandability. Therefore it can be used in embedded computing systems with legacy PC/104 stacks, as well as new SUMIT based architectures.


top

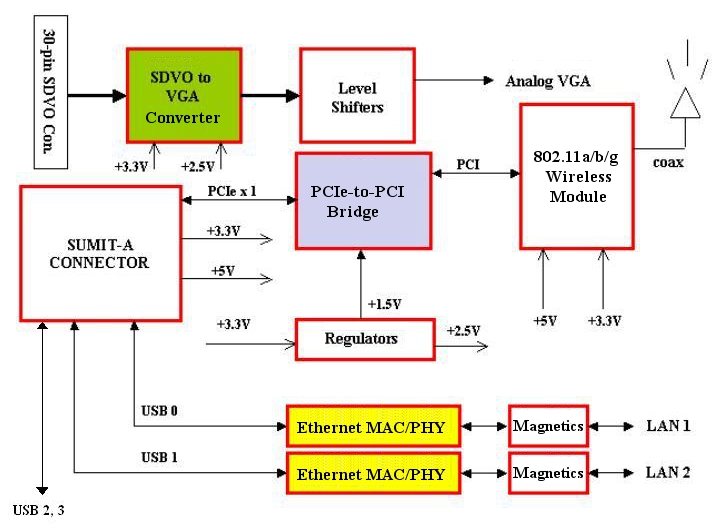

Block Diagram


Corona Block Diagram: click to enlarge

top
Corona Cable Kit (C-COR-KIT)

The Corona cable kit includes cables for Corona's on-board I/O. All cables are also available individually.

Qty Cable Description
2 6981080 Ethernet cable, 2mm 2x5 crimp to RJ-45 socket
1 6981082 Dual USB cable, 2mm 2x5 to Dual USB
1 6981084 VGA cable, 2mm 2x5 crimp to DD15F

top
Specifications

Wireless LAN
Wireless mini-PCI Module IEEE 802.11a/b/g
Number of Channels 2
Number of Antennas Support for 1 or 2
Frequency Range 802.11a mode:
     5.15~5.35GHz & 5.725~5.85GHz for US
     4.9~5.35GHz for Japan
     5.15~5.35GHz & 5.47~5.725GHz for ETSI
     5.725~5.85~GHz for China
802.11b/g mode:
     2.400~2.4835GHz for US, Canada, Japan, ETSI, and China
Channel Bandwidth 802.11a mode: 40MHz, 20MHz, 10MHz, and 5MHz
802.11b mode: 20MHz
802.11g mode: 40MHz, 20MHz, 10MHz, and 5MHz
Transmit & Receive Rates Up to 108Mbps
Average Power 23dBm (200mW)
Peak Power 28dBm (600mW)
Operating System Support Windows XP driver
Linux MADWiFi driver
General
Networking (2) 10/100Base-T Ethernet ports
USB Ports (2) USB 2.0 ports (dependent on host system)
Graphics VGA, 1920 x 1200 maximum resolution
Expansion SUMIT-A stackable
PC/104 (ISA) stackable
Power Supply +5VDC 5%
+3.3VDC 5%
Power consumption COR-LANWIFI-XT: 2.84W maximum
COR-LAN2-XT: 2.24W maximum
Dimensions 3.55 x 3.775 in. (90 x 96 mm)
Operating Temperature -40C to +85C (-40F to +185F)
Weight COR-LANWIFI-XT: 3.4oz (96g)
COR-LAN2-XT: 3.0oz (86g)
Shock MIL-STD-202G Table 213-1 J
Half-Sine Wave Shock
30 G, 11ms: 3 time shocks at both directions per axis: Vertical / Transverse / Longitudinal
Vibration MIL-STD-202G Method 204, Modified Condition I A
Random Vibration
Axes: Vertical / Transverse / Longitudinal
20-2000Hz: 20-100Hz at 6dB/octave, 100-1000Hz at 0.04G^2/Hz, 1000-2000Hz at -6dB/octave
Sine Sweep Vibration
Axes: Vertical / Transverse / Longitudinal
10-2000Hz: 10-57Hz at 0.6", 57-2000Hz at 10G, sweep rate 20 minutes per cycle
RoHS Compliant
