SUMIT/FP Adapter Module

Adds FeaturePak I/O module sockets to SUMIT-ISM stacks


SUMIT/FP Adapter
(click to enlarge)

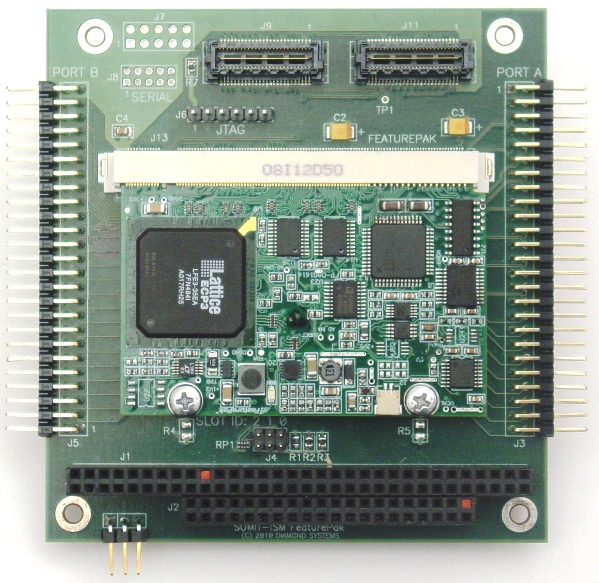

SUMIT/FP Adapter with
FP-DAQ1616 FeaturePak

(click to enlarge)
Description
Block Diagram
About the FeaturePak standard
Specifications
Get an online quote

top
Description

The SUMIT/FP Adapter board allows the use of FeaturePak I/O expansion modules in systems that provide SUMIT-ISM expansion stack locations.

The FeaturePak socket on the SUMIT/FP Adapter consumes a single PCI Express x1 lane from the SUMIT-A bus connector on the SUMIT-ISM module. The adapter provides a pair of 50-pin I/O header connectors for convenient access to all FeaturePak I/O. In addition, it includes pass-through connectors for the SUMIT-ISM stack's SUMIT-B bus and PC/104 (ISA) bus. An extended operation temperature range of -40o C to +85o C is supported.

top
SUMIT/FP Adapter Block Diagram


(click to enlarge)

top
About the FeaturePak embedded I/O standard


FeaturePak dimensions
(click to enlarge)
The FeaturePak™ Initiative, originated by Diamond Systems, was launched at the Embedded World tradeshow in March, 2010. The FeaturePak Specification defines a highly-compact, low-profile, and inexpensive way to add configurable I/O functions to embedded systems. The tiny FeaturePak modules -- measuring just 1.70 x 2.55 inches (see photo at right) -- can be used for providing snap-in options or upgrades for off-the-shelf single board computers (SBCs) and computer-on-module (COM) baseboards, or as building blocks to simplify the development of fully-custom embedded electronics. Additionally, FeaturePak modules provide "zero height expansion," in that they fit within the normal component envelope of an SBC or COM baseboard and add no height to PC/104-style I/O expansion stacks. Learn more about the FeaturePak embedded I/O expansion standard here.

top
Specifications

Form-factor Conforms to the SFF-SIG's SUMIT-ISM Type 1 specification
SUMIT-A bus functions supported 1 PCIe x1 lane from SUMIT-A connector
  1 USB channel
  SMBus
  Provides lane shifting of PCIe and USB
  +5V, +3.3V, Ground
SUMIT-B bus functions supported SUMIT-B passthrough with PCIe and USB lane shifting
  +5V, +3.3V, Ground
FeaturePak host interface functions supported 1 PCIe lane
  1 USB channel
  SMBus
  +5V, +3.3V, Ground
FeaturePak user I/O connectors 2 50-pin dual-row headers (0.1-inch pin/pin centers)
PC/104 functions supported PC/104 passthrough
Operating temperature -40o to +85o C
Power consumption Depends on FeaturePak module requirements


FEATURES
Adds a FeaturePak socket to SUMIT-ISM stacks
Conforms to SUMIT-ISM Type 1 standards
Provides SUMIT-A and SUMIT-B bus passthrough
Provides PC/104 bus passthrough
Routes 1 PCIe, 1 USB, SMBus, and power/ground from SUMIT-A to the FeaturePak Socket
Lane-shifts PCIe and USB on the SUMIT bus
Provides two 50-pin headers for FeaturePak user I/O
Supports -40o to +85o C operating temperature range
ONLINE SUPPORT
See SUMIT/FP Adapter Module Technical Resources
Request Product information
Request Technical Support
DOWNLOADS
SUMIT/FP Adapter User Manual
(.pdf, 672.3 kb)
