Products   >   Processor Modules   >   COM-based SBCs   >   Eaglet ARM SBC
FEATURES
Supports Tordadex Apalis ARM COMs:
NVIDIA Tegra T30 1.4GHz quad core Cortex A9
i.MX6 NXP/Freescale 1GHz/800MHz Cortex A9
NVIDIA Tegra TK1 quad core up to 2.2GHz Cortex A15
3-4 USB 2.0 ports depending on ARM module
2 RS-232/422/485 serial ports
2 RS-232 ports
1 Gigabit Ethernet port
VGA, HDMI and dual channel LVDS
HD audio
4 12-bit A/D; 4 PWM
8 digital I/O
I2C, SPI
PCIe MiniCard socket
Compact size: 4.0" x 4.0"
-40ºC to +85ºC operation capable
Highly configurable to satisfy customer feature requirements and cost targets
ONLINE SUPPORT
Request Product information
Request Technical Support
DOWNLOADS
Eaglet SBC datasheet
(.pdf, 379.6 kb)
Eagle/Eaglet Manual
(.pdf, 3.4 MB)

Eaglet ARM SBC

Compact Form Factor I/O Baseboard forwith installed ARM Computer-on-Modules

Eaglet I/O Baseboard

Click here for a larger image
Description
Block Diagram
Software Development Kits
Cable Kit
Specifications
Get an online quote


This product is also available as a baseboard without the ARM module installed. Configure your own Eaglet solution! Click here


Description

The Eaglet SBC combines the Toradex Apalis family of ARM COMs with a wide variety of standard and industrial I/O features to create off-the-shelf solutions for ARM-based industrial embedded computing. Eaglet SBCs include the selected ARM module and heat sink pre-installed on the Eagle baseboard. Eaglet SBCs include the selected ARM module and heat sink pre-installed on the Eaglet baseboard.

Eaglet provides a long life, scalable platform for ARM-based application development. Toradex's Apalis module family currently contains three members, with the newest module, Apalis TK1, recently introduced in July 2016. The Apalis form factor, as well as all processors used on the modules, have long life commitments from their suppliers, ensuring long life availability of the complete product. Customers have great flexibility in selecting not only the price/performance characteristics of the installed COM, but multiple configurations including the number of cores, memory and flash size, and operating temperature range.

Most I/O features can be configured to meet any customer's specific requirements as well as cost and power consumption targets. This includes removal of unneeded features and I/O connectors plus additional ruggedization services.


Supported ARM Computer-on-Modules

Apalis iMX6 Apalis T30 Apalis TK1
Freescale i.MX6 NVIDIA Tegra 3 NVIDIA Tegra K1
ARM Cortex A9 ARM Cortex A9 ARM Cortex A15
Quad core
dual core
Quad core Quad core
1GHz / 800MHz 1.4GHz Up to 2.2GHz
512MB to 2GB
DDR3 RAM
1GB or 2GB
DDR3 RAM
2GB DDR3 RAM
4GB eMMC flash 4GB/8GB eMMC flash 16GB eMMC flash
End of life 2028 End of life 2025 End of life 2025

Please visit the Toradex website, www.toradex.com, for more information about these ARM Computer-on-Modules.



Customization Options

The following customization options are available for the Eagle baseboard. Minimum order quantities apply.

  • 2 CANbus 2.0 ports via daughtercard
  • All 4 serial ports programmable RS-232/422/485
  • Wide range power supply: +9 to +36VDC
  • Hardwired configuration (no jumpers)
  • Conformal coating
  • Connector and feature depopulation

  • top
    Block Diagram


    Eagle Baseboard Block Diagram

    top
    Software Development Kits

    Complete Software Development Kits with a bootable operating system are available with all the components you need to get started on your embedded design project. The kit contains a 32GB micro-SD flashdisk for Linux pre-loaded and a software DVD.

    top
    CK-EGLT-01, CK-EGLT-02: Cable kits for Eaglet ARM SBC

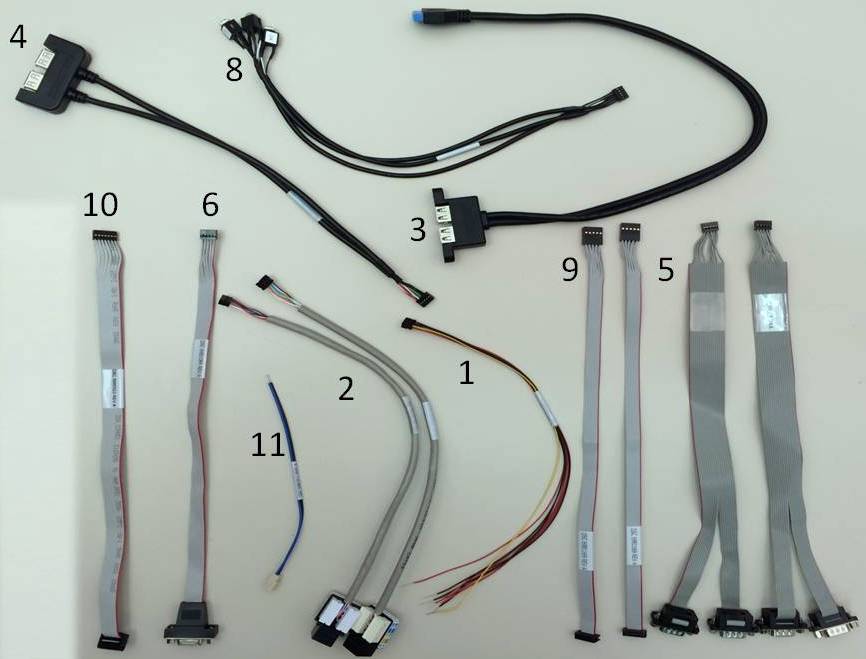

    CK-EGLT-01
    CK-EGLT-01 Cable Kit

    CK-EGLT-02
    CK-EGLT-02 Cable Kit

    Cable kits include the following cables:

    No. Cable Description Drawing CK-EGLT-01 CK-EGLT-02
    10 6980523 Ribbon cable for Utility I/O - 1 1
    6 6981084 VGA Show 1 1
    11 6981011 External battery cable Show 1 1
    2 6981080 Gigabit Ethernet cable Show 1 1
    1 6980520 Power input - 1 1
    9 6981169 Ribbon cable for GPIO, A/D, and misc Show 2 2
    5 6981075 Dual serial port DB9M Show 2 2
    4 6981082 Dual USB 2.0 type A Show 1 1
    8 6981076 Audio Show 1 1
    3 6980100 Dual USB 2.0/3.0 type A - 1 1
    7 6980522 HDMI - - 1

    top
    Specifications

    Specifications
    Supported COMs Toradex Apalis iMX6 800MHz or 1GHz ARM Cortex A9
    Toradex Apalis T30 1.4GHz ARM Cortex A9
    Toradex Apalis TK1 2.2GHz ARM Cortex A15
    Networking 1 Gigabit Ethernet port
    Serial ports 2 RS-232/422/485 ports with software configuration
    2 RS-232 ports
    USB ports Up to 4 USB 2.0 ports
    Mass storage 1 micro SD & 1 mSATA socket
    Audio HD audio
    Data acquisition 4 12-bit A/D, 4 PWM
    8 GPIO, 3.3V logic levels
    Connectivity 1 I2C, 1 SPI
    I/O expansion PCIe MiniCard socket (with SIM socket)
    Input power +5VDC
    Power consumption 12V in: 10.2W
    36V in: 10.8W
    Operating Temperature -40C to +85C (-40F to +185F) capable
    Dependent on Apalis COM selected
    Shock MIL-STD-202G compatible
    Vibration MIL-STD-202G compatible
    Operating humidity 10-95% relative humidity, non-condensing
    Dimensions 4.0 x 4.0 (102mm x 102mm)
    RoHS Compliant


    top
    Get An Online Quote


    Eaglet ARM SBC
    available models:
    EGLT-MX6-Q2G-XT
    Eaglet SBC, i.MX6 quad core CPU, 2GB RAM, wide temp
    EGLT-T3-Q1G-XT
    Eaglet SBC, T3 quad core CPU, 1GB RAM, wide temp
    Please login or signup for an online quote request.



    Cables and accessories
    available models:
    PNL-EGL-01
    Eagle / Eaglet Panel I/O Board
    SDK-EGL-MX6-LNX
    Eagle/Eaglet Linux SDK for Apalis i.MX6 model
    SDK-EGL-T3-LNX
    Eagle/Eaglet Linux SDK for Apalis T30 model
    DK-EGLT-MX6Q2G-LNX
    EagleT SBC with i.MX6 CPU, Linux OS, and cable kit
    DK-EGLT-T3Q1G-LNX
    Eaglet SBC with T3 CPU, Linux OS, and cable kit
    CK-EGLT-01
    Eaglet cable kit, no HDMI cable
    CK-EGLT-02
    Eaglet cable kit, with HDMI cable
    6980523
    Ribbon cable for Utility I/O
    6981084
    VGA
    6981011
    External battery cable
    6981080
    Gigabit Ethernet cable
    6980520
    Power input
    6981169
    Ribbon cable for GPIO, A/D, and misc
    6981075
    Dual serial port DB9M
    6981082
    Dual USB 2.0 type A
    6981076
    Audio
    6980100
    Dual USB 2.0/3.0 type A
    6980522
    HDMI
    Please login or signup for an online quote request.
