Products   >   Processor Modules   >   COM-based SBCs   >   Pluto ETX SBC
Customize Me
FEATURES
ETX CPU core provides price/performance selection
Intel Bay Trail E3845
Up to 8GB DDR3 SO-DIMM SDRAM
Quad USB 2.0 ports
Quad serial ports
Dual 10/100Base-T Ethernet ports
8 digital I/O
SATA, IDE and floppy ports
CompactFlash interface
CRT, 18-bit or 24-bit LVDS LCD and TV out
PC/104-Plus (ISA & PCI) expansion bus
-40ºC to +85ºC or -20ºC to +71ºC operating temperature
ETX form factor: 4.5 x 3.7 in.
(114 x 95 mm)
ACCESSORIES
Customers who use this product also use:
Pluto Cable Kit

This product can be customized and ruggedized. Click here for more information.
ONLINE SUPPORT
See Pluto ETX SBC Technical Resources
Request Product information
Request Technical Support
DOWNLOADS
Pluto Datasheet
(.pdf, 282.7 kb)
Pluto User Manual
(.pdf, 1.1 MB)
Embedded Ready Subsystems whitepaper
(.pdf, 386.4 kb)
Standards-Based COM Carriers
(.pdf, 222.9 kb)
Pluto Dimensions Drawing
(.pdf, 248.0 kb)
VGA cable drawing
(.pdf, 89.3 kb)
Windows 7 Audio Driver for AMD CPUs
(.zip, 97.5 MB)
Windows XP Audio Driver for AMD CPUs
(.zip, 31.5 MB)
AMD ESeries Windows CPU Drivers
(.zip, 276.7 MB)
AMD ESeries Windows Ethernet drivers
(.zip, 11.1 MB)
AMD ESeries Windows Graphics drivers
(.zip, 660.4 MB)
AMD Radeon Linux Graphics driver
(.zip, 117.2 MB)
E3845 Ethernet Drivers
(.zip, 63.7 MB)
E3845 Graphics Driver
(.zip, 444.6 MB)
E3845 Serial I/O Drivers
(.zip, 19.5 MB)
E3845 Chipset Drivers
(.zip, 2.3 MB)
E3845 GPIO Drivers
(.zip, 18.2 MB)
E3845 TXE Drivers
(.zip, 45.1 MB)

Pluto ETX SBC

ETX Form-Factor Embedded-Ready Subsystem with PC/104-Plus Expansion and Configurable CPU



Pluto Side View Pluto Angled View
Side View
Click image to enlarge
Angled View
Click image to enlarge
Description
System Block Diagram
Cable Kit
Specifications
Get An Online Quote

Description

Pluto is a high performance, highly integrated board-level embedded-ready subsystem that matches the footprint of the popular ETX computer-on-module (COM) standard. The use of interchangeable COM Express modules helps extend product lifecycles or keep up with new market needs by making it easy to replace an obsolete CPU or increase processing performance simply by replacing the COM module.

Pluto's Intel Bay Trail E3845 1.91GHz CPU core consists of an ETX CPU module mounted on its bottom side. Pluto utilizes conduction cooling for improved ruggedness and reliability through the use of a heatspreader, improving thermal management and increasing the space for I/O functions and connectors. This innovative design has enabled Pluto to integrate additional serial and Ethernet controllers, a complete set of peripheral interface header connectors, and a PC/104-Plus expansion stack location - all within the compact ETX footprint. Four mounting holes on the bottom of the conduction cooled heatspreader are provided to mount Pluto in an enclosure or to a bulkhead. These mounting holes are #6-32 threaded holes on 2.8" centers.

Pluto is offered with two models with 8G or 4G on-board SO-DIMM SDRAM capacity. Pluto can be used either as a highly integrated embedded component, or as a platform for application development and reference designs.

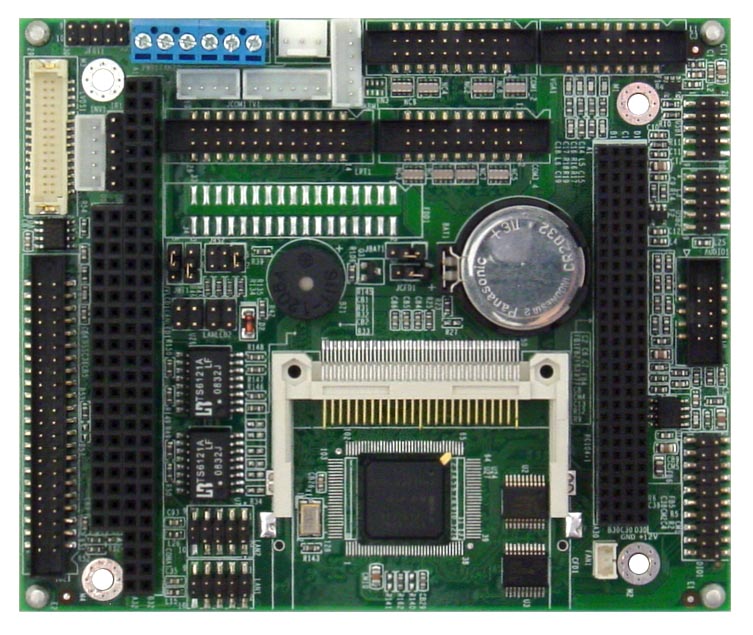

The Top of Pluto The Bottom of Pluto
Top View
Click image to enlarge

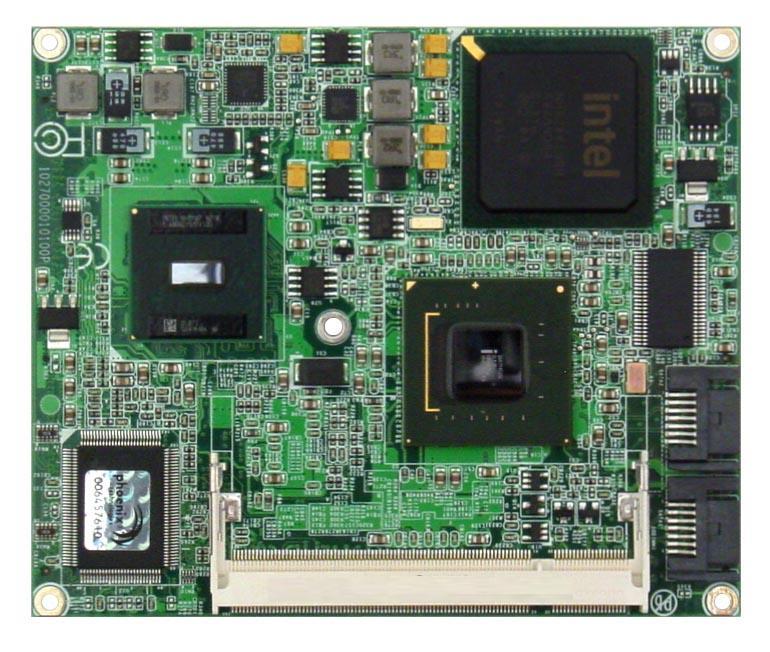

Bottom View
Click image to enlarge

Pluto's baseboard includes connectors and interfaces for keyboard, mouse, USB, serial, parallel, Ethernet, sound, various mass storage devices. It supports the connection of a wide variety of displays, including CRTs, 18-bit or 24-bit LVDS-interfaced flat panels, and televisions. Power is supplied by means of a robust six-pin terminal block.

top

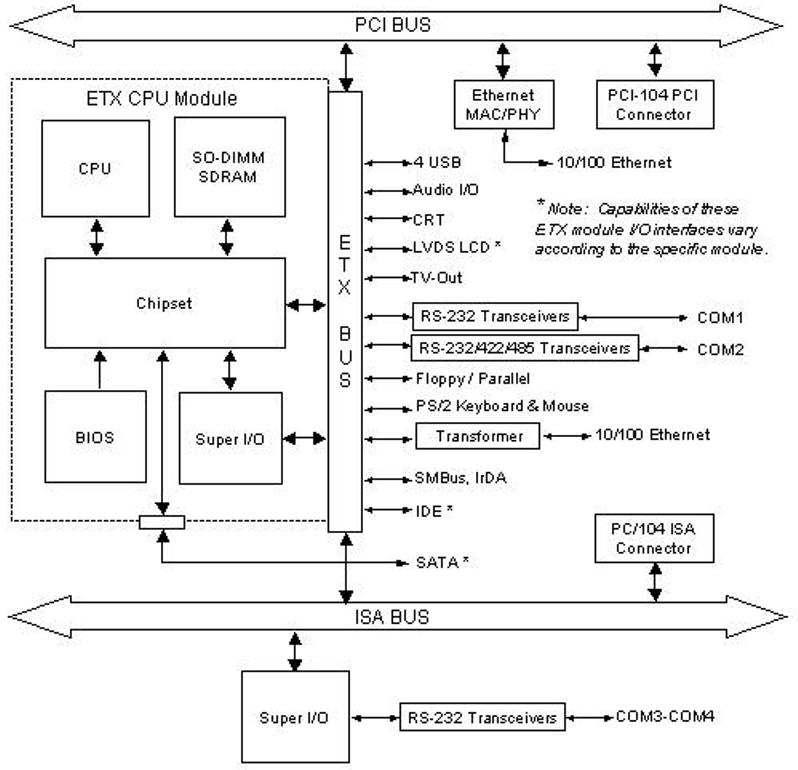

System Block Diagram


Pluto System Block Diagram
Click on the image to enlarge



top
C-PLT-KIT: Cable kit for Pluto ETX SBC

The Pluto cable kit includes cables for Pluto input and output.


Pluto ETX SBC Cable Kit

C-PLT-KIT includes the following cables:

No. Qty Cable Description Drawing
1 2 6989007 Dual USB cable -
2 1 6989004 Audio in/out cable -
3 2 6989012 SATA data cable -
4 1 6989011 PS/2 Keyboard / Mouse cable -
5 2 6989015 Ethernet RJ-45 cable Show
6 2 6989008 Dual Serial Port cable -
7 1 6989006 Parallel cable -
8 1 6989010 VGA cable -
9 1 6989001 Parallel to floppy cable -
10 1 6989005 IDE data cable -
11 1 6989002 DC Power cable, +5V & +12V, 4-wire -
12 1 6989003 DC Power cable, +5V, 2-wire -

top
Specifications

CPU and System
Processor Intel Bay Trail E3845
CPU Speed E3845: 1.91GHz
Memory Up to 8GB DDR3 SDRAM SO-DIMM
Chipset FCH A55E
BIOS UEFI BIOS
Mass Storage 2 SATA ports support one device each
1 IDE port supports 2 IDE devices including:
1 x CompactFlash IDE Type II Socket
Audio AC'97 audio CODEC, mic in, line in/out
Watchdog Timer Non-maskable interrupt or reset modes
I/O
Serial Port 3 x RS-232 ports (COM1, 3 & 4)
1 x RS-232/422/485 port (COM2)
USB Port 4 x USB 2.0 port
Keyboard/Mouse 1 x PS/2 Keyboard and Mouse
Digital I/O 8 lines
Expansion Bus 1 x PC/104-Plus (ISA & PCI) interface
Ethernet
ETX CPU 1 10/100Base-T port provided by ETX CPU
Pluto baseboard 1 10/100Base-T port from Realtek 8103EL chip
Display
Graphics Interface LCD flat panel interface (LVDS)
VGA CRT
TV output
SDVO interface
General
Power Input 5V +/-5%
Power Consumption PLT-E3845XT-xG: 10W
Operating Temperature -40ºC to +85ºC or -20ºC to +71ºC model dependent
Operating Humidity 0 ~ 90% (non-condensing)
Dimensions (L x W X H) 4.5 x 3.7 x 1.1 in. (114 x 95 x 28 mm)
Weight
(with SO-DIMM module)
11.5oz (328g)
MTBF PLT-BASE-RK 233,128 hours
RoHS Compliant

top
Get An Online Quote


Pluto ETX SBC
available models:
PLT-E3845XT-8G
Pluto SBC, 1.91GHz Intel E3845 CPU, 8GB SO-DIMM SDRAM, digital I/O, VGA/LCD video, heatspreader, -40 to +85oC operating temperature
PLT-E3845XT-4G
Pluto SBC, 1.91GHz Intel E3845 CPU, 4GB SO-DIMM SDRAM, digital I/O, VGA/LCD video, heatspreader, -40 to +85oC operating temperature
PLT-T56N-4G
Pluto SBC, 1.65GHz AMD G-T56N CPU, 4GB SO-DIMM SDRAM, digital I/O, VGA/LCD video, heatspreader, -20 to +71oC operating temperature
PLT-T56N-2G
Pluto SBC, 1.65GHz AMD G-T56N CPU, 2GB SO-DIMM SDRAM, digital I/O, VGA/LCD video, heatspreader, -20 to +71oC operating temperature
PLT-T40N-4G
Pluto SBC, 1.0GHz AMD G-T40N CPU, 4GB SO-DIMM SDRAM, digital I/O, VGA/LCD video, heatspreader, -20 to +71oC operating temperature
PLT-T40N-2G
Pluto SBC, 1.0GHz AMD G-T40N CPU, 2GB SO-DIMM SDRAM, digital I/O, VGA/LCD video, heatspreader, -20 to +71oC operating temperature
