EPS-12002L  EPS-12002L Compact 12+2 Port L2/L3 Managed Ethernet Switch

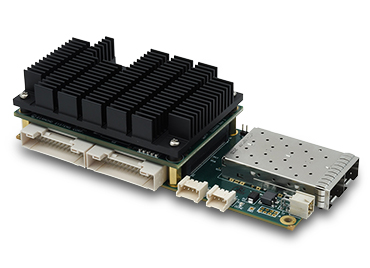

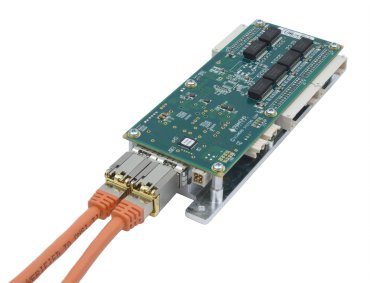

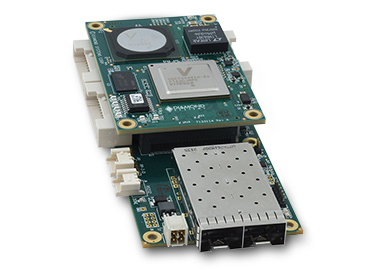

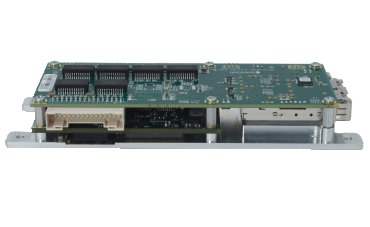

EPS-12002L switch with cooling solution removed to show detail EPS-12002L switch end view, cooling solution removed EPS-12002L-HSK with integrated heat sink EPS-12002L-HSP with heat spreader mounting plate EPS-1202L-HSP with heat spreader and Copper 10G SFP+	FEATURES Rugged Ethernet switch for vehicle and other harsh environment applications 12 gigabit Ethernet ports for twisted pair connections 2 1/2.5/5/10G SFP+ sockets for fiber or copper transceivers All ports feature non-blocking wire-speed performance Layer 2+ switching and Layer 3 routing software available IEEE 1588 PTP support available Software customization and branding available Rugged design with latching connectors and -40 to +85°C operating temperature 5.3 x 2.2 / 136 x 55mm Heat sink and heat spreader thermal options

The EPS-12002L is a compact managed rugged Ethernet switch based on Diamond's EPSM-10GX Ethernet switch module. The switch consists of the EPSM-10GX module mounted on a carrier board that provides power, magnetics, and connectors, along with a heat sink or heat spreader. EPS-12002L provides 12 10/100/1000Mbps copper ports and 2 1/2.5/5/10Gbps SFP+ sockets for fiber or copper transceivers. EPS-12002L is ideal for vehicle and industrial applications requiring a small form factor with gigabit Ethernet switching and fiber connectivity support.

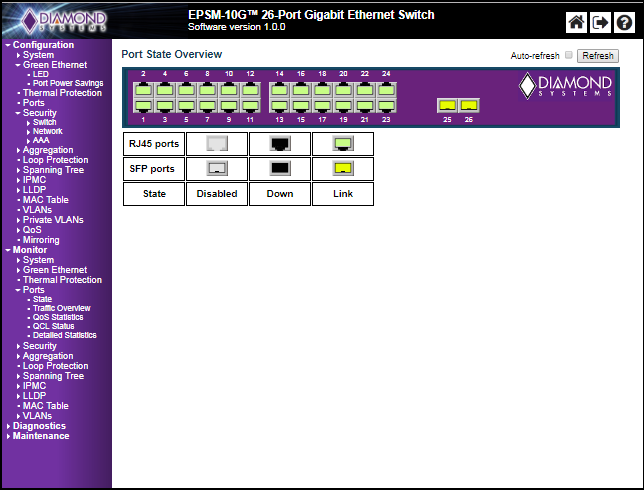

Two software packages are available, Layer 2+ switching and Layer 3 routing/switching. All software features are manageable via a GUI web interface accessible over any port, as well as with a command language accessed via a built-in RS-232 port.

EPS-12002L is designed specifically to meet the challenges of vehicle and other rugged environments, with its -40/+85°C operating temperature range, latching I/O connectors, and MIL-STD-202G shock/vibration resistance. A 5-36V input power supply provides compatibility with a range of industrial and vehicle power supplies.

Embedded Software

Two software packages are available: Layer 2+ switching and Layer 3 routing/switching. In addition, IEEE-1588 precision time protocol support is available with a minor modification to install a precision clock circuit on the board. All software features are manageable via a GUI web interface accessible over any port, as well as with a command language accessed via a built-in RS-232 port. Customer branding is available to put your logo / color scheme / part numbers on the GUI and serial interface.

The table below shows some of the more popular features available. For a complete list of features available in each software package, click here.

Layer 2+ software highlights include the following:
8K MAC addresses and 4K VLANs (IEEE 802.1Q)
8K IPv4 and IPv6 multicast group support
Jumbo frame support at all speeds
Flexible link aggregation support based on Layer-2 through Layer-4 information (IEEE 802.3ad)
Multicast and broadcast storm control, as well as flooding control
Rapid Spanning Tree protocol (RSTP) and MSTP
Multiple protocol support: IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, and IEEE 802.1X
8 priorities and 8 QoS queues per port with scheduling

Layer3 software additional highlights:
Hardware- and software-based IPv6 L3 static routing
RFC 2328 OSPFv2 dynamic routing
IEEE 1588 precision time protocol (PTP)
RADIUS accounting
Port and Queue policers

Cable Kit

Cable Kit for EPS-12000-CM: 3x Quad Gigabit Ethernet cables, Power cable, Serial cable

CK-EPS12000 includes the following cables:

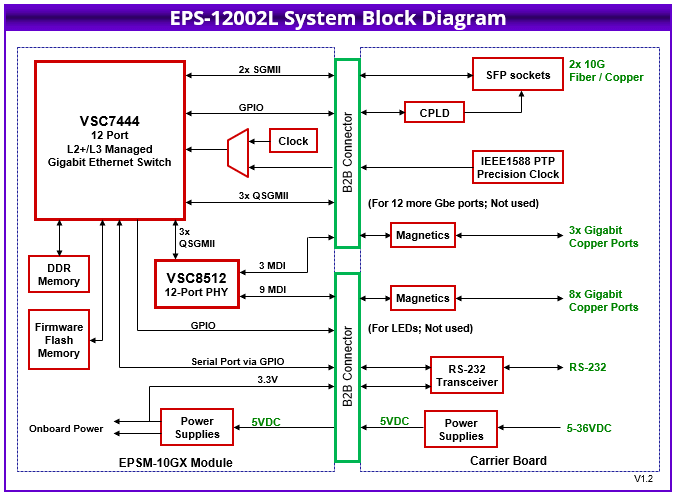

Block Diagram

Ordering Information

Models and Accessories

EPS-12002L Available Models: EPS-12002-HSK 12 1Gbe Ports + 2 1/2.5/5/10Gbe SFP+ sockets, Layer 2 software, socket headers, heat sink By Request EPS-12002L-HSK 12 1Gbe Ports + 2 1/2.5/5/10Gbe SFP+ sockets, Layer 2 software, heat sink Available EPS-12002L-HSP 12 1Gbe Ports + 2 1/2.5/5/10Gbe SFP+ sockets, Layer 2 software, heat spreader Available EPS-12002L-HSK-L3 12 1Gbe Ports + 2 1/2.5/5/10Gbe SFP+ sockets, Layer 3 routing software, heat sink By Request EPS-12002L-HSP-L3 12 1Gbe Ports + 2 1/2.5/5/10Gbe SFP+ sockets, Layer 3 routing software, heat spreader By Request Please login or signup for an online quote request.
