Products   >   Ethernet Switches

Ethernet Switches


Diamond Systems offers a variety of small form factor, managed Layer 2+ switching and Layer 3 routing/switching Ethernet switches with various combinations of 1G and 10G ports. Diamond Ethernet switches are optimized for use in rugged and industrial applications and are found in transportation, medical, aerospace and defense and other applications operating in the harshest environments.

All I/O connectors on our switches are latching, providing enhanced reliability over the RJ-45 connectors used in commercial Ethernet switches. A 50% thicker PCB provides better protection against vibration in vehicle environments. The -40ºC to +85ºC operating range makes DSC Ethernet switches suitable for use in outdoor and vehicle applications. Ultra-wide input voltage is standard on all standalone products, enabling easier integration into larger systems. Most products offer heat spreader cooling, which provides superior thermal management over traditional heat sinks. This is especially important for high-port-count applications with 10G ports in high temperature environments, where reliable operation is essential to mission success.

All switch functions are managed by a microprocessor embedded directly into the switch running advanced layer 2 or layer 3 software. The processor is accessed via an in-band web interface over one of the Ethernet ports or via an out-of-band command-line interface over an RS-232 serial port. The integrated web interface provides an intuitive GUI for use in configuring and managing all switch functionality. On-board memory holds dual application images, boot code, MAC addresses, and other parameters, and can also be used for program execution.

In addition to full-featured standalone switches, Diamond offers compact, feature-rich switch modules, which provide the core switching hardware and software technology in a compact subassembly, similar to a COM. These modules can be easily integrated onto customer-design boards, enabling the rapid creation of custom switch solutions with low risk and high functionality. Typically only the “last inch” of magnetics and connectors is needed to convert the switch module into a complete switch solution. Our ultra-rugged SabreNet switches utilize the same board-level products shown here.

Product Description Copper Ports Fiber Ports Form Factor Dimensions
EPS-8100 Layer 2+ managed 8-Port Gigabit Ethernet switch 8   PC/104 3.550 x 3.775"
EPS-12G2 Layer 2+ managed 12-Port Gigabit Ethernet Switch 12 2
1G/2.5G
COM Express 95mm x 125mm
EPS-12G1 Layer 2+ managed 12-Port Gigabit Ethernet Switch 12 1
1G/2.5G
COM Express 95mm x 125mm
EPS-12G0 Layer 2+ managed 12-Port Gigabit Ethernet Switch 12 COM Express 95mm x 125mm
EPS-12000-CM Layer 2+ / Layer 3 managed 12-Port Gigabit Ethernet Switch 12 COM Express Mini 84mm x 55mm
EPS-24016-104 Layer 2+ managed 16-Port Gigabit Ethernet switch 16   PC/104 4.550 x 3.775"
EPS-24026-104 Layer 2+ managed 26-Port Gigabit Ethernet switch 24 2
1G/2.5G
PC/104 4.550 x 3.775"
EPSM-10GX Layer 2+ / Layer 3 managed 26-Port Gigabit Ethernet switch module 24 2 10G COM Express Mini 84mm x 55mm
EPSM-10GX4 Layer 2+ / Layer 3 managed 28-Port Gigabit Ethernet switch module 24 4 10G COM Express Mini 84mm x 55mm
EPS-24G4X Layer 2+ / Layer 3 managed 28-Port Gigabit Ethernet Switch 24 4 10G -- 6.142 x 4.213"




PC/104

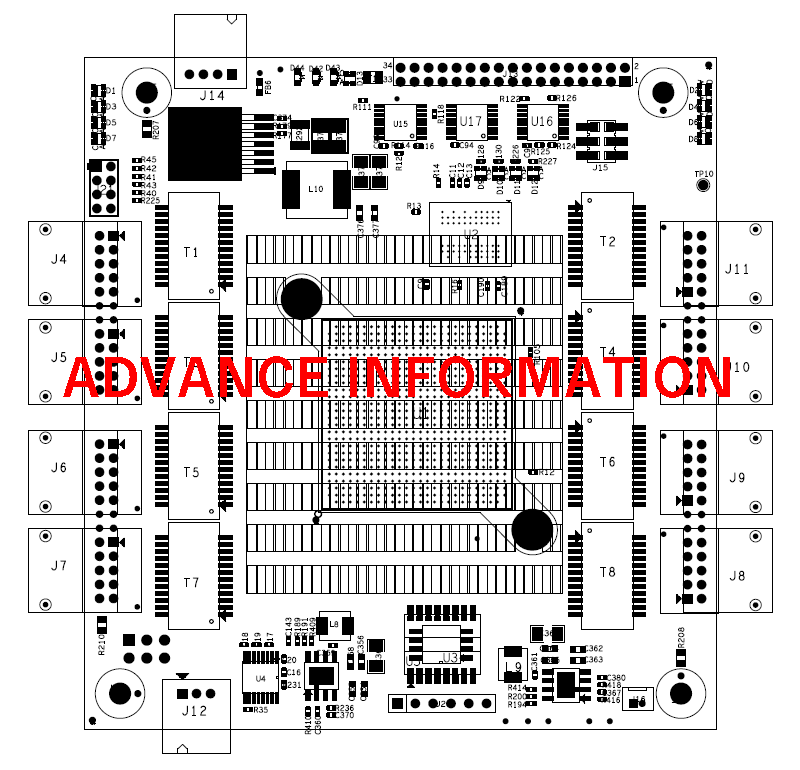

Epsilon-8100 8-port Gigabit Ethernet Switch

Managed 8-Port Gigabit Ethernet Switch with Wide Voltage Input and Serial Management Port
Epsilon-24000 26-Port Gigabit Ethernet Switch

Managed 26-Port Gigabit Ethernet Switch in PC/104 Form Factor
COM Express Mini
EPSM-10GX4

Compact Managed 28-Port Rugged Gigabit Ethernet Switch Module with 4 10G ports and IEEE-1588 PTP Support
EPSM-10GX

Ultra-Compact Managed 26-Port Gigabit Ethernet Switch Module
EPS-12000-CM

Managed Layer 2+ Ethernet Switch Module
Small Form Factor
Epsilon-12G2 14-Port Gigabit Ethernet Switch

Managed 14-Port Gigabit Ethernet Switch with Wide Voltage Input and Serial Management Port
EPS-24G4X

Managed 28-Port Gigabit Ethernet Switch with 4 10G SFP+ Ports
