Products   >   Nvidia Solutions   >   NVIDIA Solutions   >   Floyd-SC
      FLOYD-SC  Compact Expandable Carrier Board for Nvidia Jetson Nano / NX / TX2 NX GPU Modules   nvidia
OverviewOrdering
Information
Support

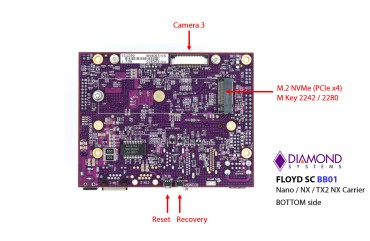

The FLOYD SC compact carrier board converts the Nvidia Jetson Nano / TX2 NX / Xavier NX modules into complete embedded systems by providing interface circuitry, I/O connectors for all module features, camera interfaces, power supply, and additional I/O in a solution measuring only 4.3x3.3� / 110x85mm. A novel expansion I/O connector enables connection of standard and custom daughterboards with additional I/O functionality to simplify the development of customized Jetson solutions.

Floyd SC features up to 3 CSI camera inputs, 2 Gigabit Ethernet ports, 2 USB 2.0 ports, 1 USB 3.0 port, 1 RS-232 and 1 RS-232/485 serial port, 16 GPIO, and HDMI + DP display support. With the NX module installed a second Ethernet port and a CAN port are available. An M.2 M-Key NVME socket supports both 2242 and 2280 size I/O and flash storage modules. Wide voltage input 7-24V provides adaptability to a range of power supplies.

Floyd SC is available in two configurations: a low-cost model with reduced features for Nano and a full-featured model with complete features supporting NX and TX2 NX.

Floyd SC is supported by a full Linux BSP based on Nvidia�s Jetpack. This software is available as a free download from our support area.

Floyd SC is available as both a carrier board component and as an assembled subsystem including the selected Jetson module with Linux OS installed. Both heat sink and fan sink cooling options are available.

Product Configurations

Floyd SC is available in a cost-optimized configuration for the Nano module and a full-featured configuration for the TX2-NX and NX modules. The full-featured model can also work with the Nano, however some features are unavailable due to not being present on the module.

FeatureFLDSC-BB01FLDSC-BB02
Modules supportedNanoNano, TX2 NX, NX
Gigabit Ethernet12 (with NX)
USB 3.011
USB 2.022
Serial ports1 RS-232 + 1 RS-232/4851 RS-232 + 1 RS-232/485
CANN/A1 port 2.0b (with NX)
Display1 HDMI1 HDMI + 1 DP
Camera3x 2-lane CSI Interface3x 2-lane CSI Interface
Storage / Expansion socketM.2 M-Key 2242 / 2280 dual footprintM.2 M-Key 2242 / 2280 dual footprint
Daughterboard expansionN/A40-pin connector with PCIe + USB 3.0 connectivity to host module (NX only)

Block Diagrams

Floyd-SC: Nvidia Solutions, NVIDIA Jetson Embedded Computing Solutions, NVIDIA Jetson Nano / NX

Floyd-SC: Nvidia Solutions, NVIDIA Jetson Embedded Computing Solutions, NVIDIA Jetson Nano / NX

I/O Expansion Connector

A flex cable connector on model BB02 enables additional I/O expansion with off the shelf or custom-developed daughterboards. The connector offers USB 3.0 and PCIe connectivity to the Jetson module, as well as power. Because an I/O daughterboard is much quicker and easier to design than a full-custom carrier board, Floyd SC makes it easy to design customized Jetson solutions with additional I/O. For example, additional USB 3.0 ports, additional Ethernet ports, an Ethernet switch, or even a PoE PD circuit can all easily be implemented on a daughterboard and directly connected to the Jetson module using a native high-speed I/O interface. Daughterboards typically are the same size as the main board and mount directly underneath the main board for convenient packaging.

Floyd-SC: Nvidia Solutions, NVIDIA Jetson Embedded Computing Solutions, NVIDIA Jetson Nano / NX

Subassembly Options

Floyd SC is available as a complete computing board-level subsystem with Jetson module, heat sink, and Linux OS installed. These subsystems save time by eliminating the assembly, programming, and testing effort.

Floyd-SC: Nvidia Solutions, NVIDIA Jetson Embedded Computing Solutions, NVIDIA Jetson Nano / NX

ModelBaseboardJetson Module
FLDSC-ASY-01-NAOBB01 - BasicNano
FLDSC-ASY-02-XNXBB02 - FullXavier NX
FLDSC-ASY-02-TNXBB02 - FullTX2 NX

Complete Systems

Floyd SC is available as a JetBox system with Jetson module and Linux OS installed, ready to load your application and deploy. All main board I/O, including the I/O on the pin headers, is brought out to the front panel using familiar commercial connectors.

Floyd-SC: Nvidia Solutions, NVIDIA Jetson Embedded Computing Solutions, NVIDIA Jetson Nano / NX

Cables

Most Floyd I/O other than the camera inputs is available using commercial connectors located along the front edge of the board. This arrangement simplifies the design of enclosures. The second serial port, GPIO signals, and CAN port (available with NX module only) do require cables.

All front-facing I/O cables for Floyd SC are industry standard, including Ethernet, HDMI, DisplayPort, and USB. Camera interface cables are generally included with the camera. Other I/O connections require custom cables. A cable kit is available with these custom cables:

CK-FLDSC-01 includes the following cables:

No. Qty Cable Description Drawing
1 1 6980524 External battery cable, discrete wires Show
2 1 6981075 Dual serial port DB9MShow
3 1 6981164 Cable, IDC20F to IDC20F, 2mm pitch, 12" length Show
4 1 6981182 CANbus 2.0 cable, JST 1x4 to DB9M Show
5 1 C-20-18 20-conductor ribbon cable, 2x10 .1" IDC sockets Show

For convenient access to the GPIO and utility signals during development, a screw terminal board is available from third party suppliers. A typical example is here

Heat Sink

The Jetson modules can consume significant power under heavy load and require cooling. Diamond Systems offers a passive heat sink and active fan sink specifically designed for use on Floyd SC. The fan on the fan sink is controlled automatically by the Linux OS and also by a DSC-supplied utility program.

Floyd-SC: Nvidia Solutions, NVIDIA Jetson Embedded Computing Solutions, NVIDIA Jetson Nano / NX

Power Input

Power is provided via a barrel jack with 5.5mm OD / 2.5mm ID dimensions. The input voltage range is 10.8-25.2VDC (supports 7V +/-5% and 24V +/-5% input voltages). A minimum 30W power supply is recommended to support peak power of the carrier, Jetson module, and attached I/O devices and provide a suitable safety margin. Diamond AC adapter PS-12V-03 provides 12V / 5A DC power with the required mating plug and an IEC 3 prong input power plug. A US AC power cord is included.
