Products   >   Ethernet Switches   >   Ethernet Switches   >   EPS-8130
      EPS-8130  Managed 8-Port Gigabit Ethernet switch with embedded layer 2 software
OverviewSpecificationsOrdering
Information
Support

Epsilon-8130 is a managed Layer 2+ Ethernet switch module offering eight 10/100/1000Mbps copper twisted pair ports in the compact PC/104 form factor. It is designed for rugged applications including industrial, on-vehicle and military. EPS-8130 is a direct replacement for the previous EPS-8100 and is fully backwards compatible with the previous product in all key respects.

Epsilon-8130 is a standalone switch that does not require any host computer interface. All switch functions are managed by a 416MHz MIPS processor embedded directly into the switch. The processor is accessed via an in-band web interface over one of the Ethernet ports or via an out-of-band command-line interface over an RS-232 serial port. The integrated web interface provides an intuitive GUI for use in configuring and managing all switch functionality. On-board memory holds dual application images, boot code, MAC addresses, and other parameters, and can also be used for program execution.

Epsilon-8130's advanced Ethernet switch chip includes two innovative features that enable automatic power savings. The switch can detect unused Ethernet ports on network devices and power them down or place them in stand-by mode. Additionally, the switch actively adjusts the power level needed based on cable length, saving energy on links shorter than the 100m maximum specified length.

Epsilon-8130 was designed for use in vehicle and harsh environment applications. All I/O connectors are latching, providing enhanced reliability over the RJ-45 connectors used in commercial Ethernet switches. The wide range 5-36V input power supply is compatible with all common vehicle and industrial power sources. The -40ºC to +85ºC operating range makes Epsilon-8130 suitable for use in outdoor and vehicle applications.

Epsilon-8130 comes loaded with all required firmware, enabling its immediate operation without any development effort. The included web interface provides an intuitive GUI for use in configuring and managing switch functionality.

Thermal Solutions

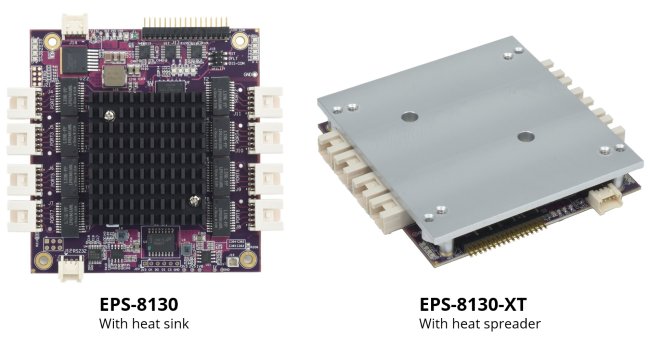

EPS-8130 is available with two cooling options. Both options support the full -40 to +85C industrial temperature range. EPS-8130 uses a low profile heat sink that fits within the PC/104 11.2mm height limit above the PCB. It is positively fixed in place with two screws. EPS-8130-XT has a heat spreader that is the same size as the PCB. It has two mounting hole patterns to support both SAE (#6-32) and Metric (M3) fasteners.

Block Diagram

EPS-8130: Ethernet Switches, , PC/104

Cable Kit

cable kit C-EPS8000-KIT includes all cables needed for the EPS-81xx series of Ethernet switches.


EPS-8130 Cable Kit

C-EPS8000-KIT includes the following cables:

No. Qty Cable Description Drawing
1 8 6981052 Ethernet cable Show
2 1 6981051 Power cable Show
3 1 6981050 Serial Cable, 1x3 2mm to DB9M Show
Managed Ethernet Switch
Switch Type Managed Layer 2+ switch
Built-in MIPS 416MHz 24KEC microcontroller for configuration and management
Number of Ports 8 10/100/1000Mbps Ethernet ports with non-blocking wire-speed performance
On-board Memory 4Mb packet memory
Shared memory buffer with per-port & CoS memory management
MEF Hierarchical MEF compliant policing & scheduling
MEF E-Lane, E-Line, and E-Tree services
Frame Buffer Jumbo frame support at all speeds
VLAN IEEE 802.1Q VLAN switch with 8K MACs and 4K VLANs
Push/pop up to two VLAN tags
Independent & shared VLAN learning (IVL, SVL)
Multicast IPv4 and IPv6 multicast group support
Remarking Dual leaky bucket policers with remarking and statistics
Classifier 8 priorities and 8 CoS queues per port with strict or deficit-weighted round robin scheduling
Shaping/policing per queue and per port
Storm Control Policing with storm control and MC/BC protection
Link Aggregation IEEE 802.3ad
Security Advanced security and prioritization available though multistage TCAM engine
RSTP Rapid Spanning Tree Protocol (IEEE 802.1W) and MSTP
MIBs Support for both WebStax and CEServices MIBs
Power Management ActiPHY and PerfectReach power management
VeriPHY cable diagnostics
Serial Port 1 RS-232 port for host interface
Indicator LEDs 18 status LEDs, two per port
2 general purpose
Standalone Capable Standalone network switch, or in combination with a host computer
General
Power Input +5 to +36V DC/DC power supply
Power Consumption 5.4W typical at +5VDC
Form Factor / Dimensions PC/104 3.55" x 3.775" (90mm x 96mm)
Operating Temperature -40°C to +85°C (-40°F to +185°F)
Weight 3.5oz (99g) with heatsink
MTBF 624,170 hours at 20°C
RoHS Compliant

Get an online quote


EPS-8130
available models:
EPS-8130
8-Port Gigabit Ethernet Switch, Layer 2 Embedded Software, Latching Connectors, -40/+85C, Heat Sink
Available
EPS-8130-XT
8-Port Gigabit Ethernet Switch, Layer 2 Embedded Software, Latching Connectors, -40/+85C, Heat Spreader
Available
Please login or signup for an online quote request.



Cables and accessories
available models:
C-EPS8000-KIT
Epsilon-8000/8100/8130 Cable Kit: Ethernet (8), power, and serial cables
6981052
Ethernet cable
6981051
Power cable
6981050
Serial Cable, 1x3 2mm to DB9M
Please login or signup for an online quote request.

Product Support for EPS-8130

User Manual

EPS-8130 User Manual(.pdf, 1.4 MB)
Support

EPS-8100 family EOL notice(.pdf, 343.9 KB)
FEATURES
8 Gigabit Ethernet ports with non-blocking wire-speed performance
Built-in 416MHz MIPS 24KEC microcontroller for configuration and management
RS-232 serial port provides out-of-band management interface
Can operate autonomously or in conjunction with a host SBC
8K MAC addresses and 4K VLANs (IEEE 802.1Q), as well as 8K IPv4 and IPv6 multicast group support
Jumbo frame support at all speeds
Dual leaky bucket policers with remarking and statistics
Flexible link aggregation support based on Layer-2 through Layer-4 information (IEEE 802.3ad)
Multicast and broadcast storm control, as well as flooding control
Rapid Spanning Tree protocol (RSTP) and MSTP
8 priorities and 8 QoS queues per port with scheduling
Shaping/policing per queue and per port
Multiple protocol support: IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, and IEEE 802.1X
Wide input voltage range: +5-36VDC
Latching connectors for improved ruggedness
PC/104 form factor module
(90 x 96mm)
Extremely rugged -40ºC to +85ºC operating temperature
