The GEODE-Osbourne computer system platform offers easy customization and quick delivery, due to its novel architecture that includes pre-integrated expansion connectors for easy addition of I/O. Geode is based on Diamond's Osbourne carrier board for Nvidia Jetson AGX Orin. The system can support all three Orin modules: AGX Orin 32GB, AGX Orin 64GB, and Orin Industrial 64GB.

The I/O connector scheme consists of a mix of standard 38999 connectors plus dedicated SJT style connectors to support both low-speed and high-speed signals cost-effectively. In the high-speed category, Geode Osbourne supports 10Gb copper Ethernet, two USB 3.2 ports, and an HDMI port. Low-speed I/O consists of a 1Gb Ethernet port, 2 USB 2.0 ports, 2 RS-232 and 2 RS-232/422/485 serial ports, 2 CAN ports, 8 GPIO 3.3V, and Audio.

Since no two rugged computer systems are exactly alike, GEODE supports up to 60 additional I/O signals and two SMA antenna connectors for I/O expansion. This enables the installation of minicard and M.2 I/O modules without requiring any change to the enclosure or cabling. The elimination of custom design and manufacturing efforts dramatically reduces up-front costs and delivery times. The resulting use of common components across multiple product configurations helps keep production costs down and facilitates the production of small quantities for pilot or small-run programs.

A GMSL camera adapter board can be installed into the system to facilitate the connection of up to 8 GMSL cameras to the system. And a rugged, isolated, wide-range-input power supply featuring MIL-STD-461, -704, and -1275 compliance can be installed as an option. The power supply and Jetson module are mounted directly to the bottom and top enclosure lids, respectively, to improve heat dissipation and keep the interior cooler for more reliable long-term operation.

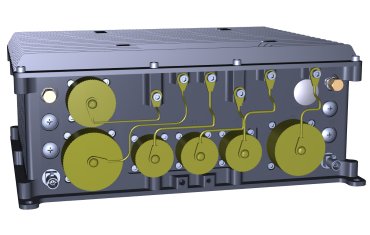

Geode consists of a 3-part aluminum CNC enclosure that eliminates T joints to improve sealing. All joints and connector cutouts utilize sealing gaskets to support an IP67 rating. The Geode series was designed to meet MIL-STD-810H shock and vibration specifications.

Panel I/O Board

Geode-Osbourne's internal architecture utilizes a direct-mount panel I/O board to eliminate most internal cables. The board contains a mix of standard 38999 and high-speed connectors to support the full range of I/O provided by the Jetson AGX Orin module and the carrier board electronics. It also includes a MIL-STD-461 filter for economical configurations where a full rugged MIL-grade power supply is not desired.
