Diamond Systems delivers military-grade rugged embedded computing systems and Ethernet switches with breakthrough pricing and delivery times. Common features and benefits of these systems include:
- Solid-body aluminum CNC construction
- MIL-DTL-38999 connectors
- IP67 environmental protection
- -40 to +85 deg. C or similar wide operating temperature
- MIL-STD-461, -704, and -1275 compliant power supply with isolation option
- Impressive I/O features
- High degree of configurability and customizability
- Short leadtimes and competitive prices
|
 |
SabreCom Mission Computers utilize Intel CPU architecture. The standard models are based on our Venus SBC with 7th generation Core i7 processor, however custom designs can use our other SBCs such as Gemini or Saturn. The already-impressive range of I/O built into the base platform can be expanded with additional minicard and PCIe/104 I/O modules.
SabreNet Ethernet Switches feature both 1Gbe copper and 10Gbe copper/fiber (SFP) connectivity and Layer 3 routing software with IEEE1588 PTP option. The embedded switch software provides for configuration via a web-based graphical user interface as well as command-line interface via RS-232 port. The software can be upgraded to offer additional customer-specific functionality.

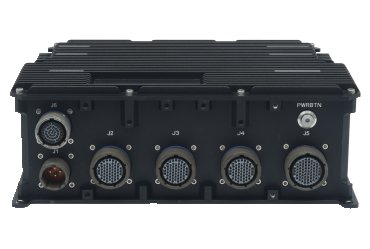

GEODE is our newest generation rugged system platform featuring design efficiencies to support rapid delivery of custom systems. A PCB assembly containing the I/O connectors is direct-mounted on the main processor board. In this way the system is more compact, more rugged, and easier to produce, and complex and expensive 38999 cable assemblies are completely eliminated. The connector board contains extra 38999 connectors to support additional I/O boards installed inside the enclosure via low cost cabling, so customizing the I/O requires no changes to the case in most cases. This technique significantly reduces the time and cost for realizing custom rugged systems.
| Product | Type | Description |
GEODE-JSP | Mission computer | Quick-ship rugged systems based on COM Express, PCIe/104, and Minicards for easy I/O expansion and performance scalability |
GEODE-OSB | Mission Computer | Quick-ship expandable rugged AI-at-the-edge system featuring NVIDIA Jetson AGX Orin GPU module |
SabreCom | Mission computer | Compact system with MIL-STD-461/704/1275, IP67, Core i7 CPU, minicard and PCIe/104 I/O expansion |
SabreCom 300 | Integrated Computer + Ethernet Switch | Core i7 / Xeon processor-based SBC, 7/15 port Gigabit Ethernet switch, and rugged MIL rated power supply in a single enclosure |
SabreNet 12000 | Ethernet Switch | Rugged compact Ethernet switch with 12 1Gbe copper ports and Layer 2+ / Layer 3 embedded software |

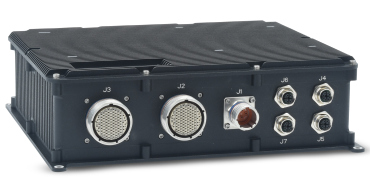

SabreNet 24000 | Ethernet Switch | Rugged switch with 24 1Gbps copper ports and 4 10Gbps copper / fiber ports |
Raptor-Epsilon | Ethernet switch | Rugged, cost-effective, 8-port Gigabit Ethernet switch with MIL-STD-461 compliance and embedded management software |
|
| | |
