Products   >   Integrated Systems   >   Rugged Systems   >   SabreNet-24000
      SABRENET-24000  Rugged 24+4 Port Ethernet Switch
SabreNet-24000: Integrated Systems, Compact, high quality, rugged systems built around Diamonds single board computers and I/O modules. ,

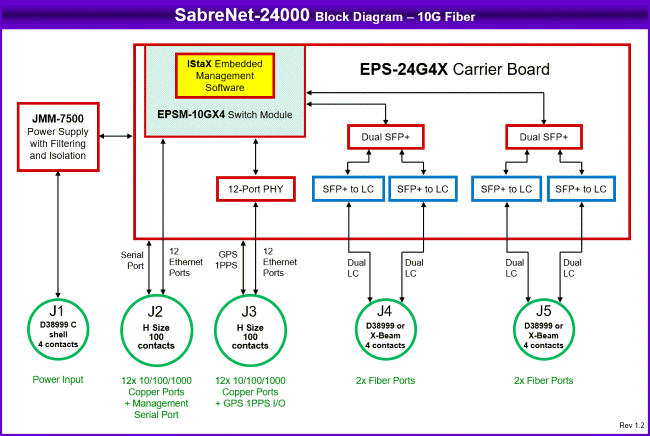

OverviewBlock DiagramOrdering
Information
Support

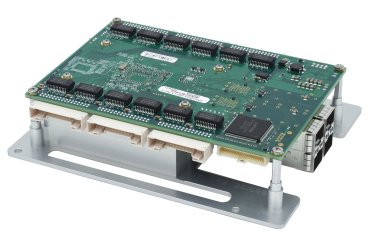

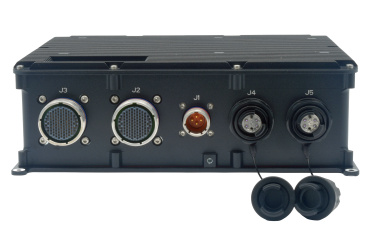

SabreNet-24000 is a rugged ethernet switch intended for vehicle and other applications requiring the ability to withstand harsh environmental conditions. The design is based on Diamond's EPS-24G4X Ethernet switch with 24 1G ports and 4 10G SFP+ sockets. The switch runs Istax Layer 3 routing/switching embedded software featuring an impressive array of features suitable for most industrial and military applications.

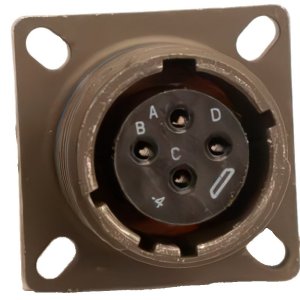

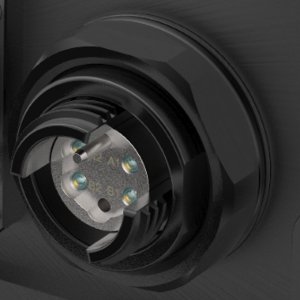

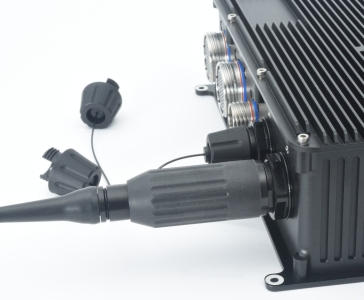

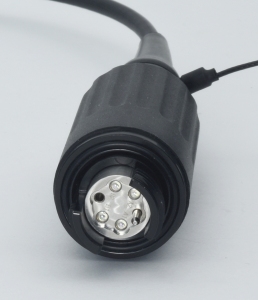

The standard configuration includes the 4 10G ports implemented with copper wiring via M12 X-coding connectors. Customer choice of fiber links can be accommodated as well. In the fiber configuration, the SFP+ Copper/RJ-45 modules are replaced with customer's choice of fiber modules with LC connections, and the I/O connectors consist of D38999 size C shells with 4 fiber termini (2 ports) per shell.

Input power range is 7-40VDC. The switch includes a power filter module providing compliance with MIL-STD-461-D standards.

Embedded Software

The Istax embedded software in SabreNet-24000 provides a powerful array of features to support most embedded switch application requirements. All features are configured and managed via a GUI web interface accessible over any port, as well as with a command language accessed via a built-in RS-232 port. Customer branding is available to put your logo / color scheme / part numbers on the GUI and serial interface.

The table below shows some of the more popular features included in the software. For a complete list of features, click here.


8K MAC addresses and 4K VLANs (IEEE 802.1Q)
8K IPv4 and IPv6 multicast group support
Jumbo frame support at all speeds
Flexible link aggregation support based on Layer-2 through Layer-4 information (IEEE 802.3ad)
Multicast and broadcast storm control, as well as flooding control
Rapid Spanning Tree protocol (RSTP) and MSTP
Multiple protocol support: IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, and IEEE 802.1X
8 priorities and 8 QoS queues per port with scheduling
Hardware- and software-based IPv6 L3 static routing
RFC 2328 OSPFv2 dynamic routing
IEEE 1588 precision time protocol (PTP)
RADIUS accounting
Port and Queue policers

SabreNet-24000: Integrated Systems, Compact, high quality, rugged systems built around Diamonds single board computers and I/O modules. ,

SabreNet-24000: Integrated Systems, Compact, high quality, rugged systems built around Diamonds single board computers and I/O modules. ,

Get an online quote


SabreNet-24000

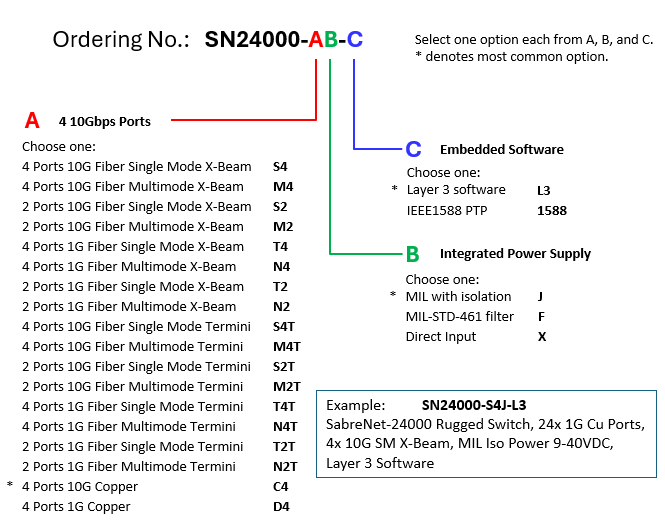

Available Models:
SABRENET-24000-001
SabreNet Rugged Switch, 24 1G + 4 10G Copper Ports
Build to order
SABRENET-24000-002
SabreNet Rugged Switch, 24 1G Copper + 4 10G Fiber Ports
Build to order
Please login or signup for an online quote request.

Product Support for SabreNet-24000
