JETHRO  JETHRO� Miniature, I/O-rich carrier board for NVidia Jetson TX2 / TX2i module     �

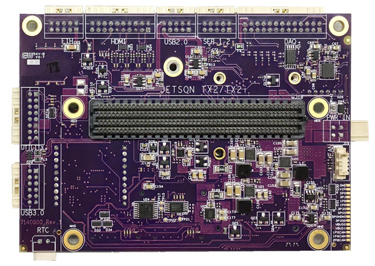

Jethro Carrier for Jetson TX2/TX2i (2.0x3.4" / 50x87mm) Top Jethro Carrier for Jetson TX2/TX2i (2.0x3.4" / 50x87mm) Bottom	FEATURES 2x 4-channel CSI camera inputs 1x 10/100/1000 Ethernet 1x USB 3.0 + 2x USB 2.0 1x HDMI 2x RS-232 6x analog inputs, 12-bit resolution, 0-3.3V output range, up to 1Msps throughput 2x analog outputs, 12-bit resolution, 0-3.3V output range 12x digital I/O, 3.3V logic levels 1x PCIe MiniCard expansion socket with USB 1x M.2 2242 SATA socket for SSD up to 256GB 1x Micro-SD socket 1x Nimbelink Skywire modem socket Latching connectors for all I/O for increased ruggedness Input voltage: 9-18VDC (with TX2 installed) / 5.5-18VDC (with TX2i installed) Dimensions: 107mm x 76mm / 4.2" x 3.0" Operating temperature: -40 to +85°C

Jethro offers a compact, low cost solution for implementation of high-performance computing solutions based on the NVidia Jetson TX2/TX2i computer modules. Jethro provides access to most I/O features of the Jetson modules, including camera, Ethernet, USB, and serial. In addition it features a unique data acquisition circuit with analog input, analog output, and digital I/O to enable Jethro to interface to the "real world" of analog and digital sensors and controls.

All I/O on Jethro uses latching connectors for increased resistance to shock and vibration. This plus an operating temperature range of -40 to +85°C make Jethro an ideal choice for deploying Jetson computing technology in vehicle or outdoor environments.

Diamond provides a complete Linux BSP for Jethro with built-in support for all I/O including the data acquisition features. A GUI provides convenient real-time control of the data acquisition I/O

Mass Storage

Jethro contains an M.2 2242 size socket for the addition of up to 256GB of additional SATA-based mass storage. A micro-SD socket is also provided.

Expansion capabilities

A PCIe minicard socket enables the installation of additional I/O to meet the needs of diverse applications. A modem socket on Jethro enables the installation of cost-effective and pre-approved Nimbelink Skywire cellular modems featuring a range of global cellular standards.

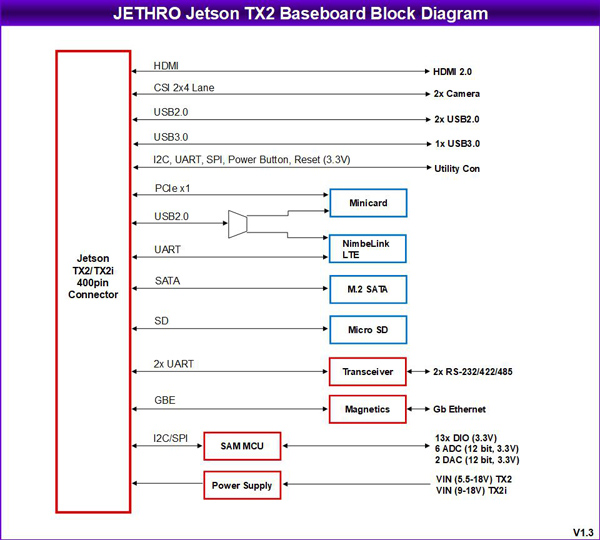

Jethro Block Diagram

Data Acquisition

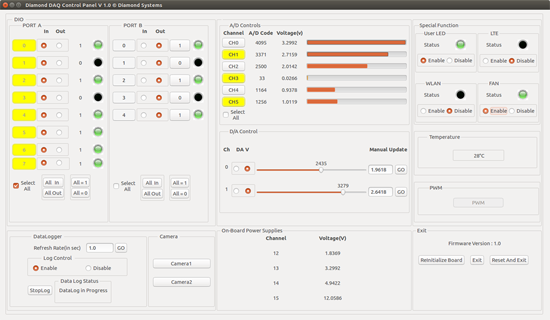

Jethro contains a full-fledged analog and digital I/O circuit that provides control and monitoring of real-world events such as sensor inputs, temperature control, keypads/switches, and industrial processes. The 6 analog inputs feature 0-3.3V input range and programmable 12-bit up to 16-bit resolution, with user-controllable filtering and averaging for noise reduction. The 2 analog outputs offer 12-bit resolution and 0-3.3V output range. The 13 DIO feature 3.3V logic levels. All features are supported by Diamond's built-in data acquisition driver software, featuring a programming library with application demos plus an interactive GUI-based control program that offers real-time access and control.

Cable kit, Jethro Latching type

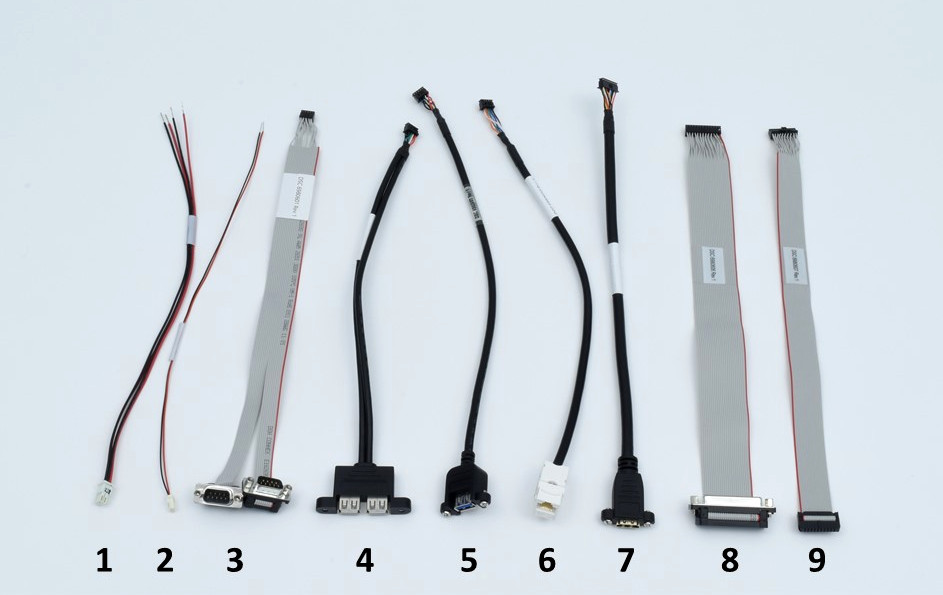

CK-JETHRO-01 includes the following cables:

Ordering Information

Models and Accessories

JETHRO Available Models: JET-BB01 Jethro baseboard for Jetson TX2/TX2i module, standard model with DAQ Available Please login or signup for an online quote request.

Available:	This model is generally available from stock. It is a mainstream or focus product in active promotion.
Coming soon:	This is a preview of an upcoming product or model. Contact Sales for an expected availability date.
EOL:	End of life. This product is no longer in production, but it may still be available in stock or manufacturable. Contact Sales if you are interested in buying this product. If there is no stock on hand, then a minimum order quantity will apply.
MOQ or Minimum Order Quantity:	This model is not generally stocked but is buildable on demand. If we have it in stock you may purchase up to the available quantity. If it is out of stock then a minimum order quantity is required to meet the factory minimum lot size. This designation usually applies to less popular models of a current product or older products that have low customer demand. Contact Sales for further information.

Cables and accessories Available Models: CK-JETHRO-01 Cable kit, Jethro Latching type 6981507 Power Cable, IPD 2x2 to Leads, 20AV 6980524 Cable, External Battery, Molex Spox 2 Pos to Tinned Leads, 12”L 6980601 Dual serial port cable, 2x DB9 male 6980602 Dual USB 2.0 cable, 2x USB 2.0 type A 6980603 Cable, FCI 2x5 2mm latching to USB 3.0 type A panel mount 6980604 Ethernet cable, FCI 2mm 2x6 latching to RJ-45 socket 6980605 HDMI Cable 6980606 Cable, FCI Latching 2mm to DB25F, 12", Ribbon 6980607 Utility I/O cable, 2x10 latching to 2x10 2mm IDC ribbon Please login or signup for an online quote request.
