ZIGGY  ZIGGY Miniature, low-cost carrier board for NVidia Jetson TX2 / TX2i module

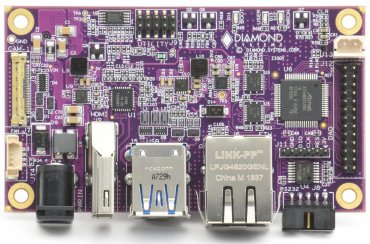

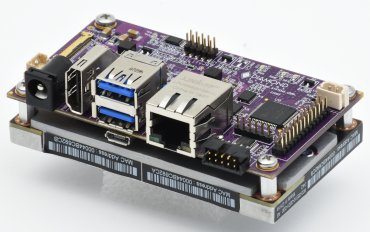

Ziggy Carrier for Jetson TX2/TX2i (2.0x3.4" / 50x87mm) Top View Angle view with TX2 module installed underneath	FEATURES 1x 4-channel CSI camera input 1x 10/100/1000 Ethernet (RJ-45) 1x USB 3.0 Type A + 1x USB 2.0 Type A 1x USB 2.0 micro with OTG support 1x HDMI 2x RS-232 6x analog inputs, 12-bit resolution, 0-3.3V output range, up to 1Msps throughput 2x analog outputs, 12-bit resolution, 0-3.3V output range 12x digital I/O, 3.3V logic levels Input voltage: 9-18V or 5.5-18V depending on installed Jetson module Input voltage: 9-18VDC (with TX2 installed) / 5.5-18VDC (with TX2i installed) Dimensions: 87mm x 50mm / 3.43" x 1.97" (same size as Jetson™ module) Operating temperature: -40 to +85°C

Ziggy offers a compact, low cost platform for evaluation of Jetson computer modules as well as implementation of a marketable solution for AI and machine learning applications. Ziggy provides access to the most popular I/O features of the Jetson modules, including camera, Ethernet, USB, and serial. In addition it features a unique data acquisition circuit with analog input, analog output, and digital I/O to enable Ziggy to interface to the "real world" of analog and digital sensors and controls.

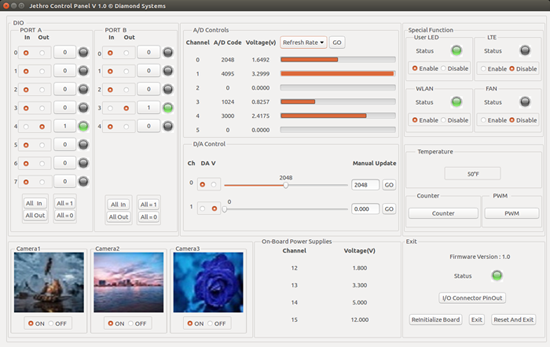

Diamond provides a complete Linux BSP for Ziggy with built-in support for all I/O including the data acquisition features. A GUI provides convenient real-time control of the data acquisition I/O.

The ZiggyBox is a cost-effective, compact, complete turnkey Jetson computing solution consisting of a Jetson TX2/TX21i module installed on a Ziggy carrier board and housed in an enclosure with table-top, wall mount, or DIN-rail mount capability.

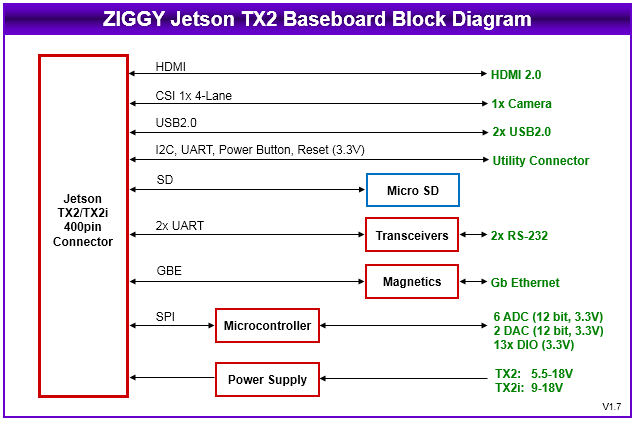

Ziggy Block Diagram

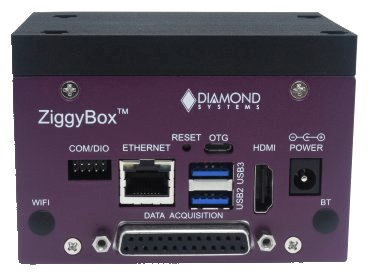

Ziggy Box System

The ZiggyBox solution incorporates the Ziggy carrier board in a sturdy, miniature box. Everything needed for a complete system is provided in the ZiggyBox. Easy access connectors ensure data acquisition, Ethernet, HDMI, USB3.0 and USB2.0,WIFI, BT and COM/DIO are accessible. One side of the Ziggy Box is dedicated for heat sink cooling and providing a solution with a fan.

Data Acquisition

Ziggy contains a full-fledged analog and digital I/O circuit that provides control and monitoring of real-world events such as sensor inputs, temperature control, keypads/switches, and industrial processes. The 6 analog inputs feature 0-3.3V input range and programmable 12-bit up to 16-bit resolution, with user-controllable filtering and averaging for noise reduction. The 2 analog outputs offer 12-bit resolution and 0-3.3V output range. The 13 DIO feature 3.3V logic levels. All features are supported by Diamond's built-in data acquisition driver software, featuring a programming library with application demos plus an interactive GUI-based control program that offers real-time access and control.

Specifications

Models and Accessories

ZIGGY Available Models: ZIG-BB01 Ziggy baseboard for Jetson TX2/TX2i module, standard model with DAQ Available ZIG-BB02 Ziggy baseboard for Jetson TX2/TX2i module, no DAQ Available Please login or signup for an online quote request.
